L7 Mini Circuit Breaker

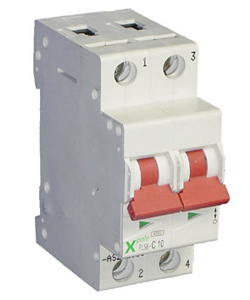

L7 New Type 2P
L7 New Type 2P
L7 Old TypeApplication:
- L7 Circuit Breaker is applicable to protecting from overload and short circuit in the circuit of AC 50/60Hz, Rated voltage 230/400V, rated current 63A, it also can be used in switch the infrequent operation of the circuit under normal conditions. It’s mainly used in industry, commerce, high-rise buildings and residential houses and so on.
- The Circuit breaker conforms to the requirement of overcurrent protective circuit breaker used in home and similar fields of IEC60898:1995, IEC60947, GB10963-1999 etc. standards, It has attained the electrical equipment safety certificate.
Technical Data
| Type | L7 |
| Number of poles | 1P, 2P, 3P, 4P |
| Rated Current(A) | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Breaking Capacity(Icu) | 6KA/ 10KA |
| Breaking capacity of rated operating short circuit(Ics) | 7500A |
| Rated Voltage(V) | 230/400V |
| Rated Frequency(Hz) | 50/60Hz |
| Circumstance Temp.(°C) | -5°C ~ +40°C |
| Electrical Life | ≥8000 |
| Mechanical Life | ≥20000 |
| Type and tripping current scope of instantaneous release | B 3In ~ 5In; C 5In ~ 10In; D 10In ~ 50In |
| Terminal protection | IP20 |

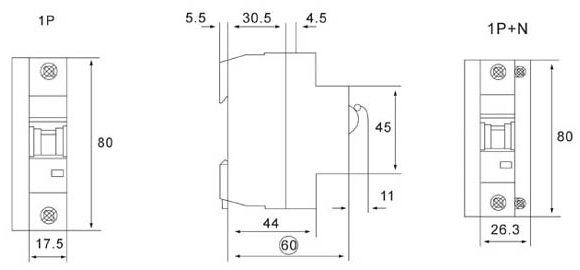

Dimensions
