    A range of (9 frames) EURO style long life design plastic case current transformer, enforced terminal makes the CT keep cooling after full load using for a long term, elegant black figure makes the CT perfectly assort with related components in high quality panel board.

Feature

  • Two built in fixing methods:Side base; Busbar mounting
  • Built in hinged terminal cover
  • Enforced terminals
  • Primary current from 5A to 3000A.
  • IEC60044-1, EN60044-1, VDE0414-44-1, GB1208-2006

Specifications

Rated Frequency 50/60Hz
Rated Test Voltage 3KV AC (1min)
Rated shot-time thermal current (Ith) 60In
Rated dynamic current (Idyn) 2.5Ith
Rated voltage (Um) 0.72KV AC
Continuous overload (Id) 1.2In
Operating temperature -10°C ~ 50°C
Housing self-extingusishing class VO
Safety factor FS 5
Secondary current 5A, 1A

Technical Data

MBO-62/BMBO-62/B
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MBO-62/B 5/5 1.5 2.5
10/5 1.5 2.5
15/5 1.5 2.5
20/5 1.5 2.5
30/5 1.5 2.5
40/5 1.5 2.5
50/5 1.5 2.5
60/5 1.5 2.5
75/5 1.5 2.5
100/5 1.5 2.5
150/5 1.5 2.5
200/5 1.5 2.5

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned

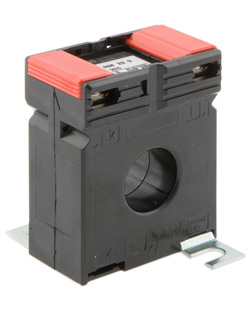

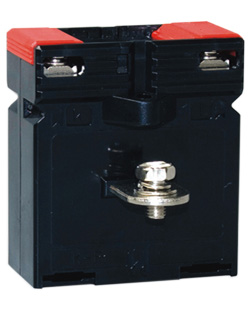

MBO-62/B
MBO-62/20MBO-62/20
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MBO-62/20 30/5 1.5(4T) 2.5(4T)
40/5 1.5(4T) 2.5(4T)
50/5 1.5(2T) 2.5(2T)
60/5 1.5(2T) 2.5(2T)
75/5 2.5(2T) 1.5
80/5 2.5(2T) 1.5
100/5 1.5 2.5
150/5 2.5 3.75
200/5 2.5 3.75

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
MBO-62/20
MB0-62/30MB0-62/30
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MB0-62/30 30/5 - 2.5(4T)
40/5 - 2.5(4T)
50/5 - 2.5(2T)
60/5 - 2.5(2T)
75/5 - 2.5(2T)
100/5 1.5 2.5
150/5 1.5 3.75
200/5 2.5 5
250/5 2.5 5
300/5 3.75 5

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
MB0-62/30
MBO-62/40MBO-62/40
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MBO-62/40 50/5 1.5 1.5
60/5 1.5 1.5
75/5 2.5 2.5
80/5 2.5 2.5
100/5 2.5 3.75
150/5 2.5 3.75
200/5 2.5 3.75
250/5 2.5 5
300/5 2.5 5

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned

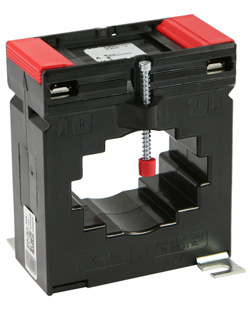

MBO-62/40
MBO-30MBO-30
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MBO-30 50/5 - 1.5(2T)
60/5 - 1.5(2T)
75/5 - 1.5
100/5 1.5 2.5
150/5 1.5 2.5
200/5 2.5 5
250/5 3.75 5
300/5 5 5
400/5 5 5

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned

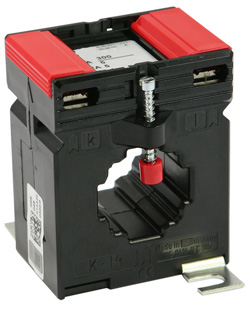

MBO-30
MBO-40MBO-40
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MBO-40 100/5 1.5 2.5
150/5 1.5 2.5
200/5 2.5 5
250/5 3.75 5
300/5 5 5
400/5 5 5
500/5 5 7.5
600/5 5 7.5

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned

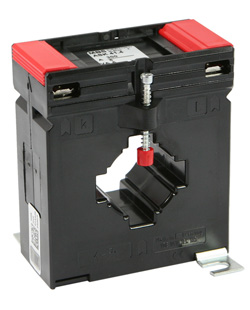

MBO-40
MBO-60MBO-60
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MBO-60 300/5 1.5 5
400/5 2.5 5
500/5 5 10
600/5 5 10
750/5 5 10
800/5 5 10
1000/5 5 10
1200/5 5 10

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned

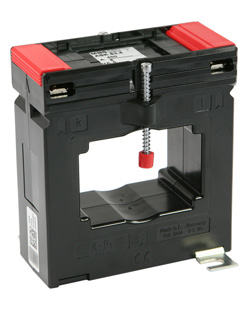

MBO-60
MBO-70MBO-70
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MBO-70 400/5 2.5 5
500/5 5 10
600/5 5 10
750/5 5 10
800/5 5 10
1000/5 5 15
1200/5 5 15
1500/5 5 15
1600/5 5 15
2000/5 5 15

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned

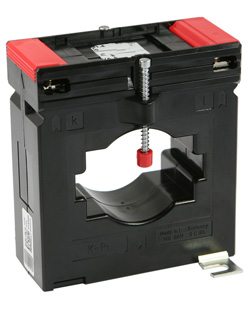

MBO-70
MBO-100MBO-100
Type Ration (A) Burden (VA)
Class: 0.5 Class:1.0
MBO-100 750/5 5 10
800/5 5 10
1000/5 5 15
1200/5 10 15
1500/5 10 15
1600/5 10 15
2000/5 10 15
2250/5 10 15
2500/5 10 15
3000/5 10 15

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned

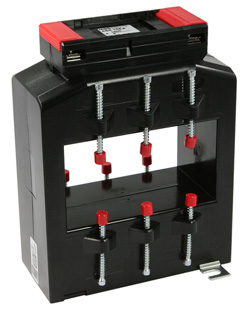

MBO-100
