MR

Feature

• Within/ Without base mounting
• Within/ Without plastic terminal cover
• Primary current from 30A ~ 5000A.
• IEC60044-1, EN60044-1, VDE0414-44-1, GB1208-2006

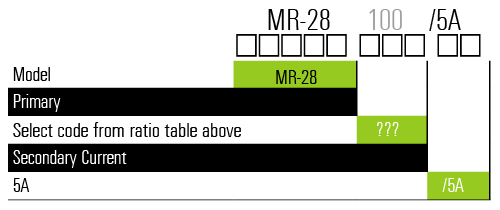

Model Reference

Specifications

Rated Frequency	50/60Hz
Rated Test Voltage	3KV AC (1min)
Rated shot-time thermal current (Ith)	60In
Rated dynamic current (Idyn)	2.5Ith
Rated voltage (Um)	0.72KV AC
Continuous overload (Id)	1.2In
Operating temperature	-10°C ~ 50°C
Housing self-extingusishing class	VO
Safety factor	FS 5
Secondary current	5A, 1A

Technical Data

Type	Ration (A)	Burden (VA)
		Class: 0.5	Class: 1.0
MR-28	50/5	-	1.5
	60/5	-	1.5
	75/5	-	1.5
	100/5	1.5	2.5

Dimensioned

Type	Ration (A)	Burden (VA)
		Class: 0.5	Class: 1.0
MR-42	100/5	1.5	2.5
	150/5	1.5	2.5
	200/5	2.5	5
	250/5	3.75	5
	300/5	3.75	5

Dimensioned

Type	Ration (A)	Burden (VA)
		Class: 0.5	Class: 1.0
MR-45	250/5	3.75	5
	300/5	5	7.5
	400/5	5	7.5

Dimensioned

Type	Ration (A)	Burden (VA)
		Class: 0.5	Class: 1.0
MR-60	300/5	3.75	5
	400/5	5	7.5
	500/5	5	10
	600/5	7.5	10
	800/5	7.5	10

Dimensioned

Type	Ration (A)	Burden (VA)
		Class: 0.5	Class: 1.0
MR-85	600/5	5	10
	800/5	7.5	10
	1000/5	10	15
	1200/5	10	15
	1500/5	10	15
	1600/5	10	15

Dimensioned

Type	Ration (A)	Burden (VA)
		Class: 0.5	Class: 1.0
MR-125	2000/5	15	20
	2500/5	15	20
	3000/5	15	20
	4000/5	15	20
	5000/5	20	30

Dimensioned

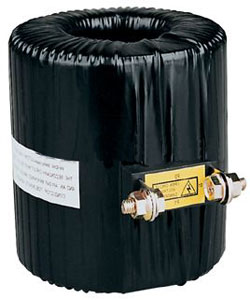

PR Protective Current Transformers

Application:

• PR Sereis Protective current transformers are required to operate over a range of current many times the circuit rating and is frequently subjected to conditions greatly exceeding those which it would be subjected to as a measuring current transformer.
• When a current transformer is used to energize a protective relay, it must maintain its characteristic ratio up to some multiple of its rated current.
• This multiple, may be 5, 10, 20 or some even higher value and is know as the "Accuracy Limit Factor (ALF)".
• Therefore, the selection of Protective Current Transformers in relation to accuracy class and ALF require a close examination of relay characteristic and circuit conditions which includes the relay burden and the pilot wire lead burden.

Feature

• Primary current from 100A ~ 5000A.
• Protection grade: 5P10; 10P5; 10P10

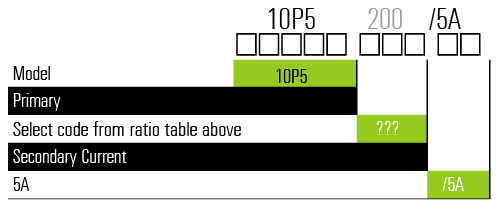

Model Reference

Specifications

Rated Frequency	50/60Hz
Rated Test Voltage	3KV AC (1min)
Rated shot-time thermal current (Ith)	60In
Rated dynamic current (Idyn)	2.5Ith
Rated voltage (Um)	0.72KV AC
Continuous overload (Id)	1.2In
Operating temperature	-10°C ~ 50°C
Accuracy limit factor (ALF)	5, 10, 20
Secondary current	5A, 1A

Technical Data

10P5

Spec.	60/5A	100/5A	150/5A	200/5A	250/5A	300/5A	400/5A	500/5A	600/5A
OD	100	100	100	100	96	96	96	100	100
ID	34	34	34	34	34	34	34	60	65
HT	148	98	68	58	68	68	68	48	58

5P10

Spec.	100/5A	150/5A	200/5A	250/5A	300/5A	400/5A	500/5A	600/5A	800/5A	1000/5A	1200/5A	1600/5A	2000/5A	2500/5A	3000/5A	3500/5A	4000/5A	5000/5A
OD	100	100	100	96	96	96	102	110	120	120	123	123	123	178	178	182	182	184
ID	34	34	34	45	45	45	62	68	62	85	82	82	125	125	125	120	120	118
HT	180	130	110	110	110	90	110	88	22	68	60	68	40	40	40	35	35	38

10P10

Spec.	100/5A	150/5A	200/5A	300/5A	400/5A	500/5A	600/5A	800/5A	1000/5A	1200/5A	1600/5A	2000/5A	2500/5A	3000/5A
OD	100	100	100	96	96	102	110	120	120	123	123	178	178	178
ID	34	34	34	45	60	60	68	62	85	82	82	125	125	125
HT	168	108	88	108	108	88	88	22	58	60	50	38	38	38

Dimensioned
