Fuse Alarms

This series of fuse alams are used in electric lines of AC50Hz and rated voltage up to 1000V as melting signal/siren for the fuse links

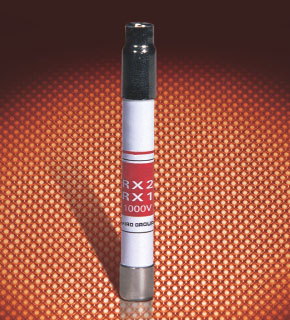

It's made up of the following parts: 1. Melt striker; 2. Micro switch (with one normal close contact and one normal open contact); 3. A base for the striker and the switch.

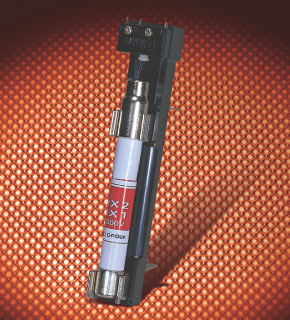

Fuse alarms are usually paralleled under the lid fasening screws at the ends of the fuse. When the fuse breaks, the striking pin springs out of the striker, the microswitch pushed and signal sent out or circuit cut down, The cistance between the two fastening ends can be adjusted in a certain range for paralleling to fuses with different hights.

Table 1

Figure 1

Table 2

Models	Components.	Rated insulation voltage (V)	Dimensions/ Sizes(mm)						Weight (g)
			Fig.	L1	L2	D	d	A
RX1-1000	Striker base	1000	Figure 2	54.5	114	27	22.5	41-88	42
RX2-1000
RZS1-1000	Striker base	1000	Figure 2	36.5	90	28	26	30-72	33
RX1A-1000	Striker base		Prepared and decided by the customer						27

Figure 2
