Magnetic Starter

GMW
GMW

LE1-D

Application

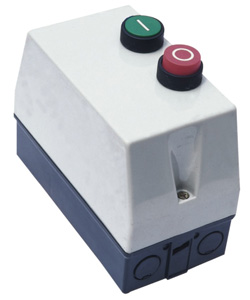

LE1-D09, 12LE1-D09, 12

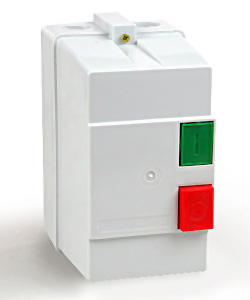

LE1-D25, 32LE1-D25, 32
LE1-D40, 95LE1-D40, 95
  • LE1-D series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance.
  • It complies to IEC947-4-1.

Specifications

Product mode No.and specificatiol LE1-09 and 12 Double in sulated,protected to IP429(3) or IP659(4)
Enclosure LE1-18 and 25 Double in sulated,protected to IP427(3) or IP557(4)
LE1-32 ~ 95 Metal, IP55 to IP559
Control(2 push buttons moufited on enclosure cover) LE1-09 ~ 95 1 Green start button ā€™Iā€™, 'I' Red stop/Teset buttion "O"
Connections LE1-09 ~ 95 Electricol power and control recircuit connections

Standard control circuit voltages

Volts 24 42 48 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7

Maximum power AC3 duty(KW) Rated current (A) Type of enclosure Code number Suitable thermal relay
220V 230V 380V 400V 415V 440V 500V 660V 690V Long Life Normal life
2.2 4 4 4 4 4 9 IP42
IP65
LE1-D094
LE1-D093
  LR2 D1312
LR2 D1314
3 5.5 5.5 5.5 5.5 5.5 12 IP45
IP55
LE1-D124
LE1-D123
LE1-D094
LE1-D093
LR2 D1316
4 7.5 9 9 10 10 18 IP42
IP55
LE1-D188
LE1-D185
LE1-D124
LE1-D123
LR2 D1321
5.5 11 11 11 15 15 25 IP42
IP55
LE1-D258
LE1-D255
LE1-D188
LE1-D185
LR2 D1322
LR2 D2353
7.5 15 15 15 18.5 18.5 32 IP55 LE1-D325 LE1-D258
LE1-D255
LR2 D2355
11 18.5 22 22 22 30 40 IP55 LE1-D405 LE1-D325 LR2 D3353
LR2 D3355
15 22 25 30 30 33 50 IP55 LE1-D505 LE1-D405 LR2 D3357
LR2 D3359
18.5 30 37 37 37 37 65 IP55 LE1-D655 LE1-D505 LR2 D3361
22 37 45 45 55 45 80 IP55 LE1-D805 LE1-D655 LR2 D3363
LR2 D3365
25 45 45 45 55 45 95 IP55 LE1-D955 LE1-D805 LR2 D3365

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
LE1-D09, 12
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
LE1-D25, 32
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
LE1-D40, 95

Top

GMW

Application

M-5CPM-5CP
GMW 9-22BGMW 9-22B
GMW 50-85GMW 50-85
GMW-22MBGMW-22MB
  • LE1-D series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance.
  • It complies to IEC947-4-1.

Specifications

Type Rated power(kW) Rated current(A) AC1 Duty (A) Setting current (A)
AC3 Duty AC3 Duty
220V~ 220V 380V~ 440V 500V~ 550V 220V~ 220V 380V~ 440V 500V~ 550V
M-5CP 3.7 7.5 9 13 12 12 20 2 ~ 4
4 ~ 8
8 ~ 16

Type Rated power(kW) Rated current(A) AC1 Duty
1pole motor AC3 Duty AC3 Duty
110V 220V 200V~ 220V 380V~ 440V 500V~ 550V 200V~ 220V 380V~ 440V 500V~ 550V A
GMW-9(B) 0.4 0.8 2.5 4 4 11 9 7 20
GMW-12(B) 0.5 1 3.5 5.5 7.5 13 12 12 20
GNW-18(B) 0.75 1.5 4.5 7.5 7.5 18 18 13 25
GMW-22(B) 0.9 1.8 5.5 11 15 22 22 22 32
GMW-32(B) 1.2 - 7.5 15 18.5 32 32 28 50
GMW-40(B) 1.7 - 11 18.5 22 40 40 32 60
GMW-50(B) - - 15 22 30 55 50 43 80
GMW-65(B) - - 18.5 30 37 65 65 60 100
GMW-75(B) - - 22 37 45 75 75 64 110
GMW-85(B) - - 25 45 45 85 85 75 135
GMW-100(B) - - 30 55 55 105 105 85 150
GMW-125(B) - - 37 60 60 125 120 90 150

Type Rated power (kW) Rated current (A) AC1 Duty
1pole moter AC3 Duty AC3 Duty
Without PB Push button type 110V 220V 220V ~ 220V 380V ~ 440V 500V ~ 550V 220V ~ 220V 380V ~ 440V 500V ~ 550V A
GMW-9M GMW-9MB 0.4 0.8 2.5 4 4 11 9 7 20
GMW-112M GMW-12MB 0.5 1 3.5 5.5 7.5 12 12 12 20
GMW-18M GMW-18MB 0.75 1.5 4.5 7.5 7.5 18 18 13 25
GMW-22M GMW-22MB 0.9 1.8 5.5 11 15 22 22 22 32

Top
