M611

Application:

• The products conform to the standard of JEC 282-1 IEC157-1.VDE0660.IEC947-2.IEC947-4-1.IEC947-5-1.
• They are used for the circuit of AC voltage 660V. DC voltage 440V,curreut 0.1-40A Used for protection of electrical motor's overload and breaker. and also being start of electrical motor. In order to enlarge the range of use, we produce twenty-eight attach-ments for you to choose. For example, vdtage protection, separating unbutton leakage explode protecting,opening door type circuit breaker in adding power,and sealed Fitting case, pan-el type fitting, track fitting panel,operating key with lock and all kinds of special terminals.

Technical Data

Current (A)	Current Rang(A)	Power KW
		220V	380V	660V
0.16	0.10～0.16	－	－	－
0.25	0.16～0.25	－	0.06	－
0.40	0.25～0.40	0.06	0.09	－
0.63	0.40～0.63	0.09	0.12	－
1.0	0.63～1.0	0.12	0.25	－
1.6	1.0～1.6	0.25	0.55	－
2.5	1.6～2.5	0.37	0.8	－
4.0	2.5～4.0	0.75	1.5	－
6.3	4.0～6.3	1.5	2.5	3
10	6.3～10	2.5	4	4
16	9.5～16	4.0	7.5	5.5
20	13～20	5.0	9	7.5
25	19～25	5.5	11	7.5
32	24～32	7.5	15	11
40	30～40	9	18.5	15
63	40～63	15	30	22
80	63～80	18.5	40	30

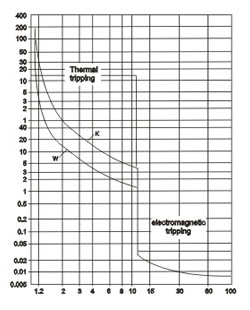

Characteristic Curve

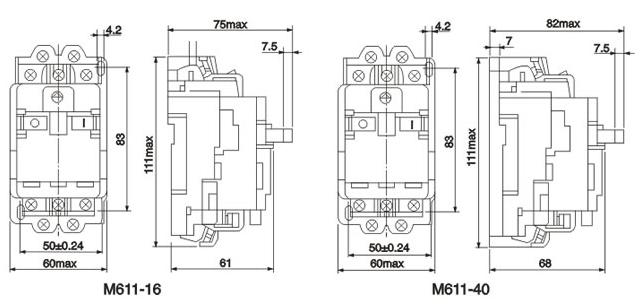

Overall and Mounting Dimensioned Chart
