Octagon InsulatorOctagon Insulator

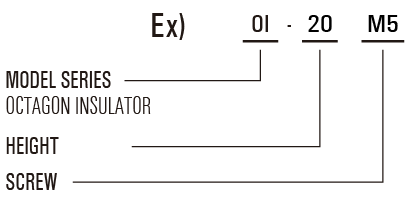

    Meaning and classification models

Feature

  • Variety of Color
  • Variety of Screw M5, M6, M8, M10, M12
  • Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
  • Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

Technical Data

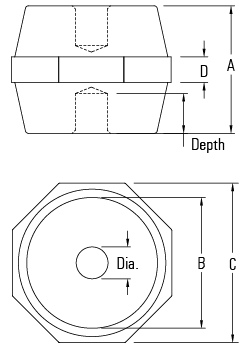

DimensionFig. 1
Type Dimension (mm) Screw (mm) Tensile
strength
(LBS)
Voltage
withstand
(KV)
Torgue
strength
(FT LBS)
A B C D Fig. Dia. Depth
OI-20 20 Φ12 15 6 Fig. 1 M5 7 300 4 4
OI-30 30 Φ26 30 7 Fig. 1 M6 10 500 8 8
OI-40 40 Φ24 30 8 Fig. 1 M6 13 550 8 10
OI-40A 40 Φ34 40 7 Fig. 1 M8 13 700 8 20
OI-40B 40 Φ41 50 8 Fig. 1 M10 14 1000 8 30
OI-50 50 Φ44 55 10 Fig. 1 M10 17 1500 15 40
OI-55 55 Φ40 60 10 Fig. 1 M10 17 2000 15 50
OI-70 70 Φ39 50 10 Fig. 1 M10 17 1500 25 40

Top

4000 Series

Octagon InsulatorOctagon Insulator

Feature

  • Variety of Color
  • Variety of Screw M5, M6, M8, M10, M12
  • Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
  • Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

Technical Data

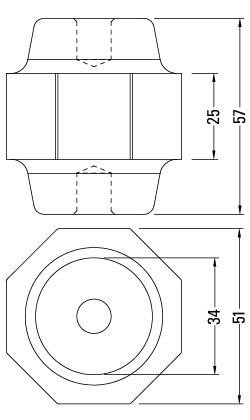

DimensionFig. 1
Type Dimension (mm) Screw (mm) Tensile
strength
(LBS)
Voltage
withstand
(KV)
Torgue
strength
(FT LBS)
Fig. Dia. Depth
457 Fig. 1 M10, 3/8-16 15 1000 10 30

Top
