Current Transformer

Split Core Current Transformer

Home

DP, DBP

Description

DBPDBP
    The DP series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DBP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs.

Feature

  • Two built in fixing methods: Base; Busbar mounting
  • Primary current from 5A to 5000A.
  • IEC60044-1, EN60044-1, VDE0414-44-1, GB1208-2006

Specifications

Rated Frequency 50/60Hz
Rated Test Voltage 3KV AC (1min)
Rated shot-time thermal current (Ith) 60In
Rated dynamic current (Idyn) 2.5Ith
Rated voltage (Um) 0.72KV AC
Continuous overload (Id) 1.2In
Operating temperature -10°C ~ 50°C
Housing self-extingusishing class VO
Safety factor FS 5
Secondary current 5A, 1A

Technical Data

DBP-23DBP-23
Type Ration (A) Burden (VA)
Class: 0.5 Class: 1.0
DBP-23 200/5 - 1.5
250/5 - 2.5
300/5 1.5 2.5
400/5 2.5 3.75

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
DBP-23

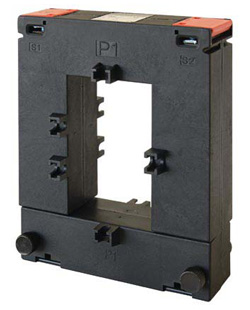

DBP-58DBP-58
Type Ration (A) Burden (VA)
Class: 0.5 Class: 1.0
DBP-58 250/5 - 1.5
300/5 - 2.5
400/5 1.5 2.5
500/5 2.5 5
600/5 2.5 5
750/5 2.5 5
800/5 3.75 5
1000/5 5 10

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
DBP-58

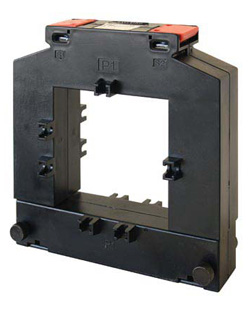

DBP-88DBP-88
Type Ration (A) Burden (VA)
Class: 0.5 Class: 1.0
DBP-88 250/5 - 1.5
300/5 - 1.5
400/5 1.5 2.5
500/5 2.5 2.5
600/5 2.5 5
750/5 2.5 5
800/5 3.75 5
1000/5 5 7.5

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
DBP-88

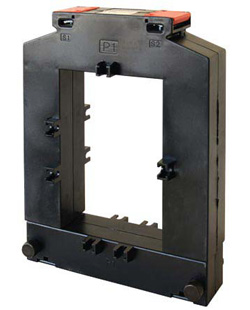

DBP-812DBP-812
Type Ration (A) Burden (VA)
Class: 0.5 Class: 1.0
DBP-812 500/5 - 2.5
600/5 - 2.5
750/5 2.5 5
800/5 2.5 5
1000/5 3.75 7.5
1200/5 5 10
1250/5 5 10
1500/5 7.5 10

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
DBP-812

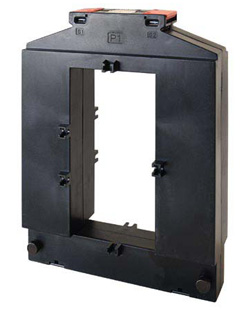

DBP-816DBP-816
Type Ration (A) Burden (VA)
Class: 0.5 Class: 1.0
DBP-816 1000/5 5 10
1500/5 7.5 10
2000/5 10 15
2500/5 15 20
3000/5 20 25
4000/5 20 25
5000/5 20 25

Dimensioned

Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
Dimensioned Dimensioned Dimensioned Dimensioned Dimensioned
DBP-816
