Fluorescent Lamp

Waterproof, Dustproof and Moistureproof Fluorescent Lamp

Home

T8D Series

Features:

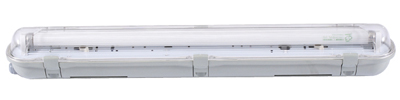

T8D Single Lamps 1x18W, 1x36W, 1x58WSingle Lamps 1x18W, 1x36W, 1x58W

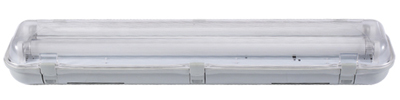

T8D Double Lamps 2x18W, 2x36W, 2x58WDouble Lamps 2x18W, 2x36W, 2x58W
  • Body: Injection moulded,opaque UV stabilized polycarbonate body, waterproof gasket in natural silicon gel.Secure the gear tray by "T" shape rotated supports,with plastic gear tray holder connected to the body for easy installation and maintenance.Closing clips in polycarbonate or stainless steel,with two clips at one side of the diffuser suspending the cover once opened.The design of the end of the clips is for easy opening the diffuser by fingers only, no need other tool.
  • Reflector: White-coated flat metal plate,with two ends 5mm down for the appropriate position of the lamp once installed.
  • Diffuser: Injection moulded,transparent UV stabilized polycarbonate diffuser, highly impact resistant,It features averaged 3mm width anti-dazzling prismatic line and stylish,fine grained frosted front "and" shape planes.

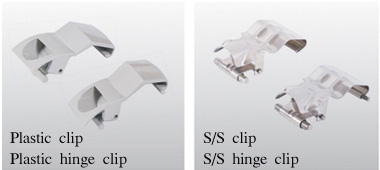

    Sealed Mounting & ConnectionClip

Characteristics

Type Lamps Protection  Clip QTY. Dimensions(mm) QTY./CTN
(PCS)
Packing Szie
(mm)
L W H LF
V3118D 1x18W T8 G13 IP65/ IK08 6 664 90 90 350 12 685x395x300
V3136D 1x36W T8 G13 IP65/ IK08 8 1274 90 90 900 9 1295x300x300
V3158D 1x58W T8 G13 IP65/ IK08 10 1574 90 90 1200 9 1595x300X300
V3218D 2x18W T8 G13 IP65/ IK08 6 664 140 90 350 9 685x450x300
V3236D 2x36W T8 G13 IP65/ IK08 8 1274 140 90 900 6 1295x450x205
V3258D 2x58W T8 G13 IP65/ IK08 10 1574 140 90 1200 6 1295x450x205

Dimension

Dimension

Top
