Fluorescent Lamp

Waterproof, Dustproof and Moistureproof Fluorescent Lamp

Home

T8G Series

Features:

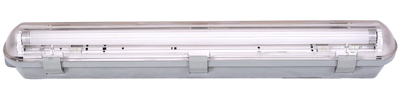

T8G Single Lamps 1x18W, 1x36W, 1x58WSingle Lamps 1x18W, 1x36W, 1x58W

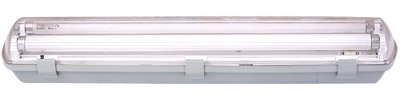

T8G Double Lamps 2x18W, 2x36W, 2x58WDouble Lamps 2x18W, 2x36W, 2x58W
  • Body: Injection moulded,opaque UV stabilized polycarbonate body, waterproof gasket in natural silicon gel. Secure the geartray by "U" shape fixed supports.with plastic gear tray holder connected to the body for easy installation and maintenance of the electrical components. Closing clips in polycarbonate or stainless steel.
  • Reflector: White-coated flat metal plate, complex parabolic profile ensures optimization of lighting performance.
  • Diffuser: Injection moulded,transparent UV stabilized polycarbonate diffuser,highly impact resistant, It features averaged 5mm width anti-dazzling prismatic line and stylish,fine grained frosted front planes, simple and good appearance. The diffuser can be suspended by the transparent plastic holder to the gear tray for easy installation and maintenance of the lamps.

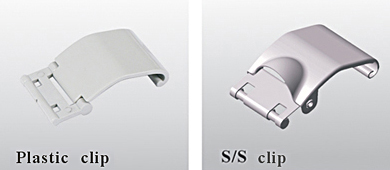

    Sealed Mounting & Connection Clip

Characteristics

Type Lamps Protection  Clip QTY. Dimensions(mm) QTY./CTN
(PCS)
Packing Szie
(mm)
L W H LF
V3118G 1x18W T8 G13 IP65/ IK08 6 660 95 96 350 12 685x408x315
V3136G 1x36W T8 G13 IP65/ IK08 10 1270 95 96 790 6 1295x310x215
V3158G 1x58W T8 G13 IP65/ IK08 12 1570 95 96 1000 6 1595x310x215
V3218G 2x18W T8 G13 IP65/ IK08 6 660 145 96 350 9 685x460x315
V3236G 2x36W T8 G13 IP65/ IK08 10 1270 145 96 790 4 1295x310x215
V3258G 2x58W T8 G13 IP65/ IK08 12 1570 145 96 1000 4 1595x305x215

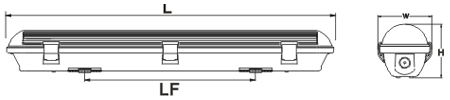

Dimension

Dimension

Top
