Wiring Duct

Home

Slotted

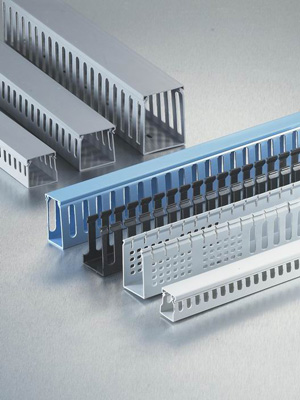

Wire Duct - Slotted

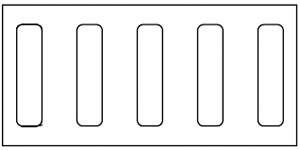

Outlet O
H

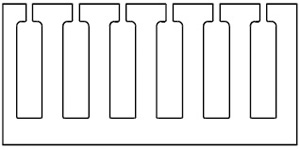

Outlet H
O

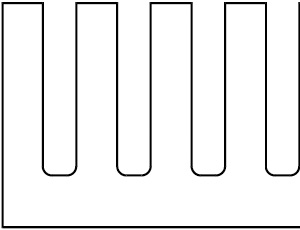

Outlet H
U

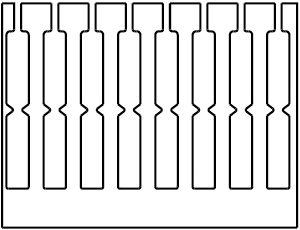

Outlet K
K

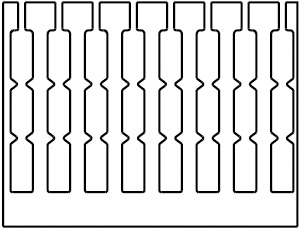

Outlet Y
Y
  • Material: Made from PVC(grey),good insulation andheat-resistingup to 85℃.
  • Struction: Made up of duct bottom and lid, with two out-holes designd at the bottom.
Item No. H x W
(mm)
Contained Wire
(2.02)
Outlet PCS/CTN Color Length
H O U K Y
PXC-2015 20×15 5~12PCS       100 GREY
BLUE
WHITE
2M
PXC-2525 25×25 10~25PCS       50
PXC-3015 30×15 5~15PCS       100
PXC-3020 30×20 10~20PCS       50
PXC-3025 30×25 15~25PCS       50
PXC-3030 30×30 20~30PCS       50
PXC-3035 30×35 25~40PCS       50
PXC-3525 35×25 15~25PCS       50
PXC-3535 35×35 20~25PCS       50
PXC-4025 40×25 20~25PCS 50
PXC-4030 40×30 40~45PCS 50
PXC-4035 40×35 40~45PCS 50
PXC-4040 40×40 60~70PCS 50
PXC-4545 45×45 70~90PCS 50
PXC-5020 50×20 15~20PCS 50
PXC-5025 50×25 20~25PCS 50
PXC-5030 50×30 30~40PCS 50
PXC-5035 50×35 50~60PCS 50
PXC-5040 50×40 60~70PCS 50
PXC-5045 50×45 70~80PCS 50
PXC-5050 50×50 80~90PCS 50
PXC-5055 50×55 90~100PCS 50
PXC-5060 50×60 100~120PCS 50
PXC-5080 50×80 150~200PCS 30
PXC-50100 50×100 200~250PCS 30
PXC-6025 60×25 30~40PCS 50
PXC-6030 60×30 30~50PCS 50
PXC-6035 60×35 60~80PCS 50
PXC-6040 60×40 100~110PCS 50
PXC-6045 60×45 110~120PCS 50
PXC-6050 60×50 110~125PCS 50
PXC-6060 60×60 110~120PCS 40
PXC-6545 65×45 100~130PCS 50
PXC-8025 80×25 100~120PCS 40
PXC-8035 80×35 110~120PCS 30
PXC-8040 80×40 120~135PCS 30
PXC-8045 80×45 120~140PCS 30
PXC-8050 80×50 130~180PCS 30
PXC-8055 80×55 135~190PCS 30
PXC-8060 80×60 180~210PCS 30
PXC-8080 80×80 240~290PCS 18
PXC-80100 80×100 260~350PCS 20
PXC-10050 100×50 130~180PCS 20
PXC-10060 100×60 240~290PCS 20
PXC-10080 100×80 260~350PCS 20
PXC-100100 100×100 300~400PCS 20

Top

Sold

Wire Duct - Sold
  • Material: Made from PVC(White), good insulation and heatresistingup to 85℃.
  • Struction: Made up of duct bottom and lid.
  • Application: Used in stage, electric, air conditioning or indoors.
  • Feature: Solid design, especially for anti-dust and mouse.
Item No. H x W Contained Wire
(1.52)
Length
PZC-1015 10x15 3-5PCS 2M
PZC-1020 10x20 3-6PCS
PZC-1025 10x25 5-10PCS
PZC-1525 15x25 5-10PCS
PZC-2030 20x30 10-20PCS
PZC-2035 20x35 15-25PCS
PZC-2540 25x40 20-40PCS
PZC-3050 30x50 30-50PCS
PZC-3060 30x60 55-65PCS
PZC-5080 50x80 180-200PCS
PZC-50100 50x100 220-250PCS
PZC-80100 80x100 260-350PCS
PZC-100100 100x00 300-400PCS

Top
