A micro switch, also known as snap-action switch, is a generic term used to refer to an electric switch that is actuated by very little physical force, through the use of a tipping-point mechanism. They are very common due to their low cost and durability, greater than 1 million cycles and up to 10 million cycles for heavy duty models. This durability is a natural consequence of the design. Internally a stiff metal strip must be bent to activate the switch. This produces a very distinctive clicking sound and a very crisp feel. When pressure is removed the metal strip springs back to its original state. Common applications of micro switches include the door interlock on a microwave oven, levelling and safety switches in elevators, vending machines, and to detect paper jams or other faults in photocopiers. Micro switches are commonly used in tamper switches on gate valves on fire sprinkler systems and other water pipe systems, where it is necessary to know if a valve has been opened or shut.
The defining feature of micro switches is that a relatively small movement at the actuator button produces a relative large movement at the electrical contacts, which occurs at high speed (regardless of the speed of actuation). Most successful designs also exhibit hysteresis, meaning that a small reversal of the actuator is insufficient to reverse the contacts; there must be a significant movement in the opposite direction. Both of these characteristics help to achieve a clean and reliable interruption to the switched circuit.

Home

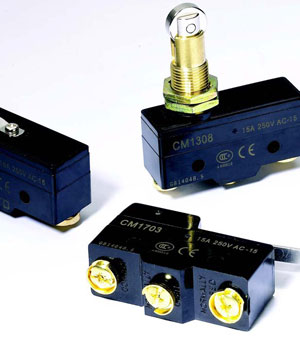

CM Micro Switch

Features

  • Virous of actuators, action position is adjustable (such as CM1701)
  • High switch on and off capacity(15A)
  • High accuracy
  • Wide range of operation speed
  • Each type of CM series has solder terminal, screw terminal and tab terminal are selective
  • Add A for solder terminal, add C for tab terminal, blank for screw terminal
  • Contact Form

    >> Download PDF (375KB)

    Ratings

    Rated Voltage
    (V)
    Noninductive Load
    (A)
    Inductive Load
    (A)
    Inrush Current
    Resistance Load Lamp Load Inductive Load Motor Load
    NC NO NC NO NC NO NC NO NC NO
    125VAC
    250VAC
    500VAC
    15
    15
    3
    3
    2.5
    1.5
    1.5
    1.25
    0.75
    15
    15
    2.5
    5
    3
    1.5
    2.5
    1.5
    0.75
    30 max. 15 max.
    8VDC
    14VDC
    30VDC
    125VDC
    250VDC
    15
    15
    6(2)
    0.4
    0.2
    3
    3
    3
    0.4
    0.2
    1.5
    1.5
    1.5
    0.4
    0.2
    15
    10
    5
    0.05
    0.03
    5
    5
    5
    0.05
    0.03
    2.5
    2.5
    2.5
    0.05
    0.03

    Characteristics

    Operation speed 0.01mm-1m/sec
    Operating frequency Mechanical: 240 operations/min.
    Electrical: 20 operations/min.
    Contact resistance 15mΩ max. (initial value)
    Insulation resistance 100mΩ min. (at 500VDC)
    Dielectric strength 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
    1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
    1500VAC, 50/60 HZ for 1 minute between each terminal and ground
    Vibration frequency 10-55HZ,1.5mm double amplitude
    Shock Mechanical durable: 1, 000m/Sec2 (about 100G'S)
    Malfunction: 300m/Sec2 (about 30G'S)
    Ambient temperature General purpose type: -25℃ to +80℃, Sealed type: -15℃ to +80℃
    Humidity General purpose type: 85% RH max., Sealed type: 95% RH max.
    Life Mechanical: 20,000,000 operations min.
    Electrical: 500,000 operations min.
    Weight About 22g to 58g
    Degree of protection IP65

    Operating characteristics

    Models CM1300 CM1301 CM1303 CM1305 CM1306 CM1307 CM1308 CM1309 CM1701
    OF Max. 350g 300g 300g 350g 350g 350g 350g 350g 70g
    RF Min. 114g 50g 50g 114g 114g 114g 114g 114g 14g
    PT Max. 0.4mm 4mm 4mm 0.4mm 0.4mm 0.4mm 0.4mm 0.4mm 10mm
    OT Min. 0.13mm 1.6mm 1.6mm 1.6mm 1.6mm 5.5mm 3.58mm 3.58mm 5.6mm
    MD Max. 0.05mm 1.3mm 1.3mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 1.27mm
    FP Max.   20.6mm 31.8mm           28.2mm
    OP(mm) 15.9 ±0.4 mm 17.4 ±0.8 mm 28.6 ±0.8 mm 28.2 ±0.5 mm 21.5 ±0.5 mm 21.50. ±8 mm 33.4±1.2 mm 33.4±1.2 mm 19 ±0.8 mm

    Models CM1702 CM1703 CM1704 CM1705 CM1743
    OF Max. 160g 100g 160g 10g 160g
    RF Min. 28g 22g 42g 3g 42g
    PT Max. 5mm 7.1mm 2.7mm 20mm 2.7mm
    OT Min. 2mm 4mm 2.4mm 5.6mm 2.4mm
    MD Max. 1mm 1.02mm 0.5mm 3mm 0.5mm
    FP Max. 24.8mm 36.5mm 32.5mm   43.6mm
    OP(mm) 19 ±0.4 mm 30.2 ±0.8 mm 30.2 ±0.4 mm 19±0.4 mm 43.1 ±0.8 mm

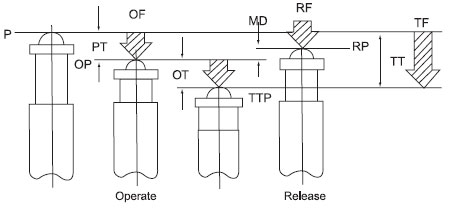

    Definitions of operating characteristics:

      OF: operating force
      Force needed to add to the executer unit to actuate switch contact
      RF: releasing force
      Force needed to add to the execter unit to make the switch contact back to normal position
      TF: total force
      Force needed to make executer unit move from free position to limitation position
      FP: free position
      Primary position of executer unit without external force adding to executer unit
      OP: operating position
      The position of executer unit in case of the contact rapidly moving to the contact position for action
      RP: releasing position
      The position of executer unit in case of the contact rapidly backing to normal position to action contact position
      TTP: total tavel position
      The position of executer unit in case of executer unit reaching the limitation position
      PT: pretravel
      The distance or angle that the executer unit passes since free position to action position
      OT: overtravel
      The distance or angle that the executer unit surpasses action position
      MD: movement differential
      The distance or angle from action position to reversion position
      TT: total tavel
      The distance or angle represents the movement till action and the total movement after all actions.

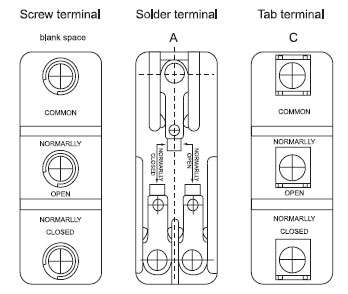

    Terminal Type

    Top
