General-Purpose Relay

Home

LY1, LY2, LY3, LY4

LY1
LY1
LY2
LY2
LY3
LY3
LY4
LY4

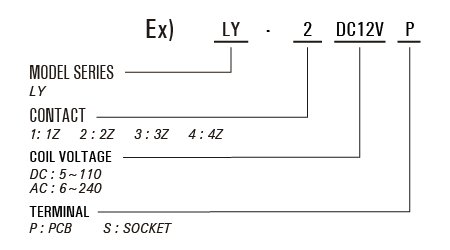

Order Code

    Order Code

Connection

    Connection

Technical Data

>> Download PDF (665KB)

Technical Specification

Insulation Resistance ≥500mΩ (500VDC)
Dielectric strength Between coil and contacts ≥1500VAC1min
Between open contacts ≥1000VAC1min
Between contacts of different poles ≥1500VAC1min
Operate/ Release time ≤25ms/ 25ms
Terminal Type PCB & Socket

Contact Specification

Contact Form 1Z, 1H, 1D 2Z, 2H, 2D 3Z, 3H, 3D 4Z, 4H, 4D
Contact Resistance ≤50mΩ (1A 6VDC)
Contact Material AgCdO, AgSnO2
Contact Capacity 15A 250VAC/ 28VDC 10A 250VAC/ 28VDC

Coil Specification

Rated Coil Power 0.9W 1.2VA

Coil Date

Nominal voltage
VDC
Operate voltage
VDC
Release voltage
VDC
Coil resistance
Ω±10%
Nominal voltage
VAC
Operate voltage
VAC
Release voltage
VAC
Coil resistance
Ω±10%
5 4.0 0.50 30 6 4.80 1.80 12
6 4.8 0.60 40 12 9.60 3.60 42
12 9.6 1.20 160 24 19.2 7.20 168
24 19.2 2.40 640 48 38.4 14.4 675
48 38.4 4.80 2560 110/120 96.0 36.0 3500
110 88.0 11.0 12100 220/240 176.0 66.0 14000/16500

Dimension

LY1, LY2

Dimension

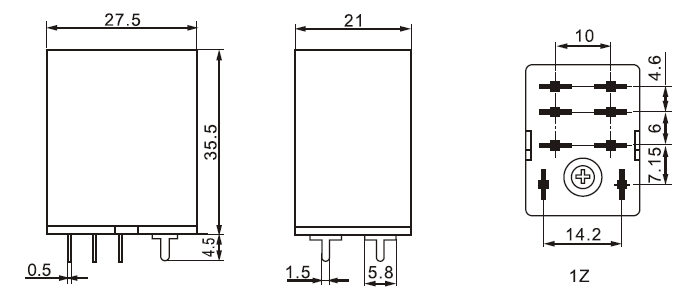

PCB
Dimension

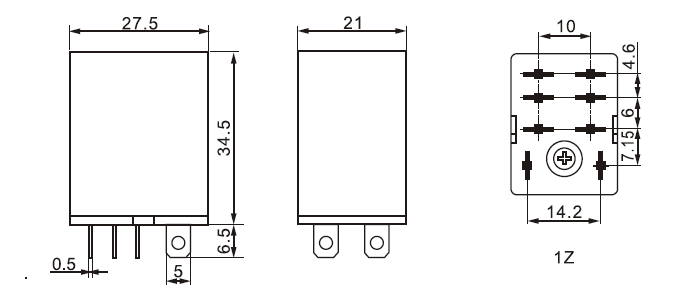

SOCKET
Dimension

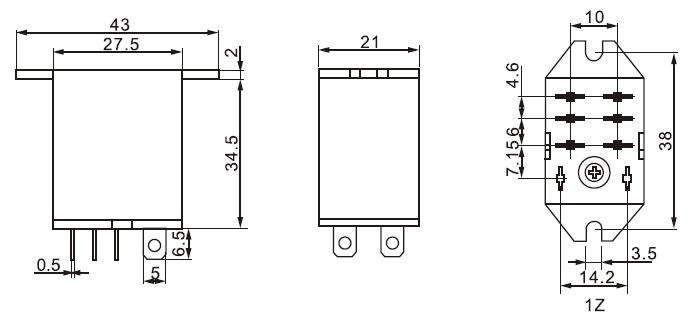

FLANGE

LY3

Dimension

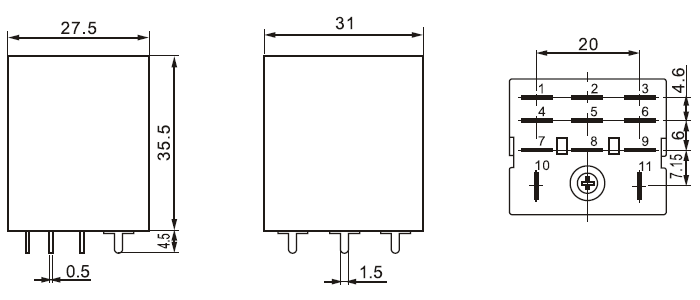

PCB
Dimension

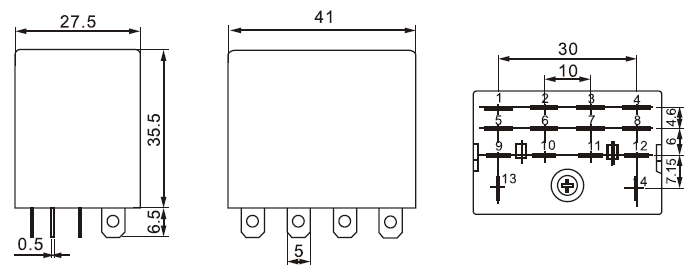

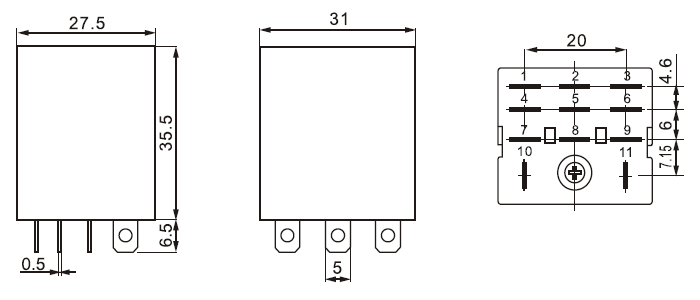

SOCKET

LY4

Dimension

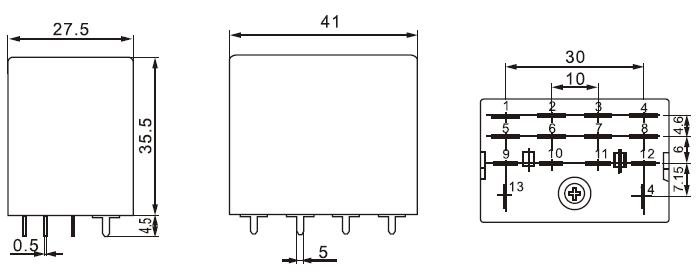

PCB
Dimension
SOCKET
Dimension

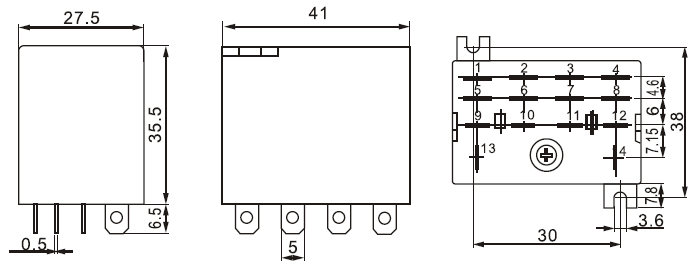

FLANGE

Wiring Diagram

Wiring Diagram
LY1
Wiring Diagram
LY2
Wiring Diagram

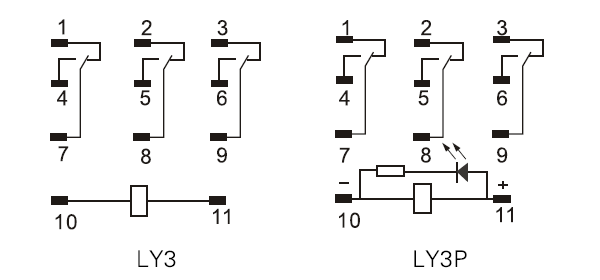

LY3
Wiring Diagram

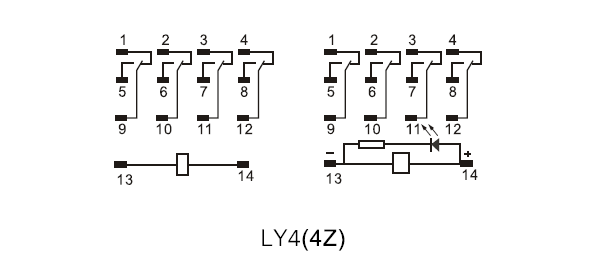

LY4

Top
