Features:

Hydraullc crimping tool is a professional tool for crimping copper and aluminum lugs with different types, a wide range of crimping die from 4mm² to 10000mm² to suit for different size demand.
The main crimping shape is hexagonal, special shape design is provid.

Technical Data

Item. No.	Crimping Range	Crimping Force	Crimping Type	Stroke	Length	Weight	Package	Accessories	Remark
YQK-70	4-70mm²	8T	Hexagon	10mm	310mm	2.80kg	Plastic Box	Crimping dies: 4, 6, 8, 10, 16, 25, 35, 50, 70mm² Sealing O-ring; one set	/
YYQ-120 YYQ-120A	10-120mm²	12T	Hexagon	14mm	425mm	4.00kg	Plastic Box	Crimping dies: 10, 16, 25, 35, 50, 70, 95, 120mm² Sealing O-ring: one set	/
YQK-240	16-240mm²	16T	Hexagon	22mm	480mm	5.20kg	Plastic Box	Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm² Sealing O-ring: one set	/
YQK-300	16-300mm²	16T	Hexagon	22mm	500mm	6.30kg	Plastic Box	Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² Sealing O-ring: one set	/
KYQ-300	16-300mm²	16T	Hexagon	22mm	500mm	6.80kg	Steel Case	Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² Sealing O-ring: one set	/
KYQ-300B KYQ-300C	16-300mm²	16T	Hexagon	22mm	500mm	6.80kg	Steel Case	Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²	/
KYQ-400	50-400mm²	20T	Hexagon	25mm	540mm	8.30kg	Plastic Box Steel Case	Crimping dies: 50, 70, 95, 120, 150, 185, 240, 300, 400mm²	/
KDG-150 KDG-150A	16-150mm²	16T	Indent	20mm	500mm	4.60kg	Steel Case	Female dies: 16, 25, 35, 50, 70, 95, 120, 150mm² Male dies: 16-25-35, 50-70-95, 120-150mm²	Open crimping head, Rotate the die to choose crimping size.
KDG-200 KDG-200A	16-200mm²	16T	Indent	20mm	470mm	4.90kg	Steel Case	Female dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 200mm² Male dies: 16-25-35, 50-70-95, 120-150, 185-200mm²	Open crimping head, Rotate the die to choose crimping size.


THS-150	HT-300

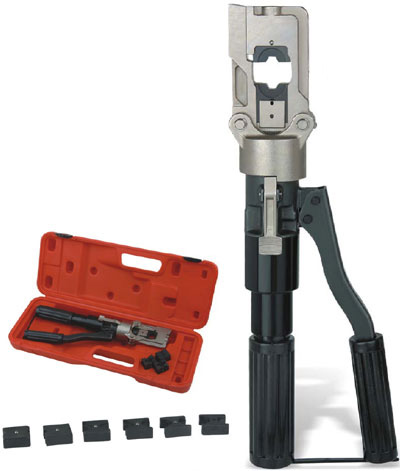

Features:

The THS-150 was designed to accept dies for BEKU type mechanical tool widely used in European countries.
The light weight and slim design is ideal for close quarter application such as connection in the switch box.
Easy latch type closed head provides easy insertion and removal of connectors. The spring loaded pump handle allows on hand pumping untill lower die holds connector between dies.
The built-in safety valve will by-pass the oil supply when the maximum pressure is reached and the pressure release system can easlly be operated at any stage of compression.

Technical Data

Item. No.	Crimping Range	Crimping Force	Crimping Type	Stroke	Length	Weight	Reservoir Capacity	Package	Accessories	Remark
THS-150	10-150mm²	60KN	Hexagon	15mm	370mm	2.50kg	60cc	Plastic Box	Crimping dies: 10, 16, 25, 35, 50, 70, 95, 120, 150mm²	Safety System Inside

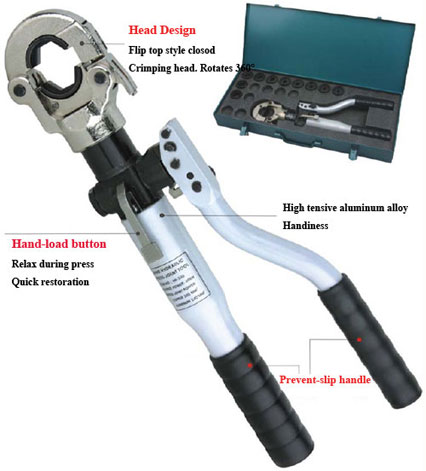

Features:

The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.
For ease of operation and comfort the operator the tool head can be fully rotated through 360° .
The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the pressure relesse system can easlly be operated at any stage of compression.
With interchangeable dies.

Technical Data

Item. No.	Crimping Range	Crimping Force	Crimping Type	Stroke	Length	Weight	Package	Accessories	Remark
HT-300	16-300mm²	60KN	Hexagon	17mm	460mm	3.30kg	Steel Case	Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²	Safety System Inside

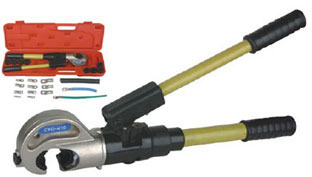

CYO-410	CYO-430	CYO-510B

Features:

Design to accommodate hexagonal, dies for applying compression fitting to copper, aluminum conductors.
Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.
Automatic retraction when the pressure reaches 700kg/cm²(12T) reached.
The glass fiber operation insulates the stick can bear the electric voltage 200KV, keeping on the minute.
180° rotatable head.
The pressure outside the body adjusts to press the valve, don't need the whole structure to lie down.

Technical Data


FYQ-300	FYQ-300C	FYQ-400

Technical Data


CO-400B	FYQ-630	FYQ-630A	FYQ-1000

Technical Data

Item. No.	Crimping Range	Crimping Force	Crimping Type	Stroke	Height	Weight	Package	Accessories	Remark
CO-400B	16-400mm²	20T	Hexagon	22mm	240mm	6.50kg	Plastic Box	Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²	It can match hand pump CP-700
FYQ-630	150-630mm²	30T	Hexagon	25mm	350mm	13.10kg	Steel Case	Crimping dies: 150, 185, 240, 300, 400, 500, 630mm²	It can match hand pump CP-700
FYQ-630A	150-630mm²	30T	Hexagon	25mm	370mm	28.00kg	Steel Case	Crimping dies: 150, 185, 240, 300, 400, 500, 630mm²	It can match Hand Pump CP-700 or Electric Pump ZCB6-5
FYQ-1000	400-1000mm²	55T	Hexagon	28mm	380mm	46.00kg	Steel Case	Crimping dies: 400, 500, 630, 800, 1000mm²	Suggest to match Electric Pump ZCB6-5

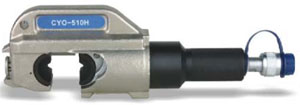

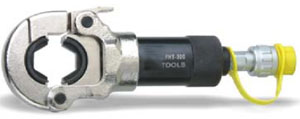

FHT-300	SHP-430H	SHP-510H

Technical Data

Item. No.	Crimping Range	Crimping Force	Crimping Type	Stroke	Height	Weight	Package	Accessories	Remark
FHT-300	16-300mm² Cu-conductors 10-240mm² Al-conductors	6T	Hexagon	16mm	/	4.00kg	/	Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²	/
SHP-430H	50-400mm²	13T	Hexagon	30mm	240mm	6.50kg	Steel Case	Crimping dies: 50, 70, 95, 120, 150, 185, 240, 300, 400mm²	It can match hand pump CP-700
SHP-510H	50-400mm²	13T	Hexagon	38mm	370mm	5.70kg	Steel Case	Crimping dies: 50, 70, 95, 120, 150, 185, 240, 300, 400mm²	It can match hand pump CP-700
