Self Locking Cable Ties

Self Locking Cable Ties
  • Material:Nylon 66, 94V-2 certificated by UL.Heat-resisting,Acid & erosion control, insulate well and not apt to age.
  • Operating temperature:-35℃  to 85℃.
  • Color:Natural(or white, standard color),UV black and other colors are available as requested.

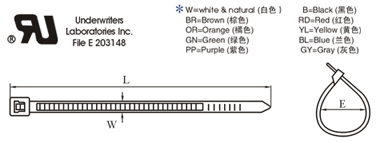

Item No. L W
(mm)
Bundle diameter E
(mm)
Min. loop tensile strength
Inch mm LBS KGS
CHS-3x60 2 3/8" 60 2.5 2-11 18 8
CHS-3x80 3 3/16" 80 2.5 2-16 18 8
CHS-3x90 2 5/8" 90 2.5 2-18 18 8
CHS-3x100 4" 100 2.5 2-22 18 8
CHS-3x120 4 3/4" 120 2.5 2-30 18 8
CHS-3x140 5 1/2" 140 2.5 2-33 18 8
CHS-3x150 6" 150 2.5 2-35 18 8
CHS-3x160 6 1/4" 160 2.5 2-40 18 8
CHS-3x200 8" 200 2.5 2-50 18 8
CHS-4x100 4" 100 3.5 2-22 40 18
CHS-4x120 4 3/4" 120 3.5 3-30 40 18
CHS-4x140 5 1/2" 140 3.5 3-33 40 18
CHS-4x150 6" 150 3.5 3-35 40 18
CHS-4x180 7" 180 3.5 3-42 40 18
CHS-4x200 8" 200 3.5 3-50 40 18
CHS-4x220 8 5/8" 220 3.5 3-58 40 18
CHS-4x250 10" 250 3.5 3-65 40 18
CHS-4x280 11" 280 3.5 3-70 40 18
CHS-4x300 11 5/8" 300 3.5 3-80 40 18
CHS-4x370 14 1/2" 370 3.5 3-102 40 18
CHS-5x120 4 3/4" 120 4.5 3-24 50 22
CHS-5x180 7" 180 4.5 3-42 50 22
CHS-5x190 7 1/2" 190 4.5 3-46 50 22
CHS-5x200 8" 200 4.5 3-50 50 22
CHS-5x250 10" 250 4.5 3-65 50 22
CHS-5x280 11" 280 4.5 3-70 50 22
CHS-5x300 78/5" 300 4.5 3-82 50 22
CHS-5x350 13 3/4" 350 4.5 3-90 50 22
CHS-5x380 15" 380 4.7 3-102 50 22
CHS-5x400 15 3/4" 400 4.7 3-105 50 22
CHS-5x430 17" 430 4.7 3-110 50 22
CHS-5x450 17 3/4" 450 4.7 3-130 50 22
CHS-5x500 19 11/16" 500 4.7 3-150 50 22
CHS-8x150 6" 150 6.8 3-33 85 38
CHS-8x180 7" 180 6.8 3-42 85 38
CHS-8x200 8" 200 6.8 3-50 85 38
CHS-8x250 10" 250 6.8 4-63 85 38
CHS-8x270 10 5/8" 270 6.0 4-65 65 30
CHS-8x300 11 5/8" 300 7.5 4-82 85 38
CHS-8x350 13 3/4" 350 7.5 4-90 120 55
CHS-8x370 14 1/4" 370 7.5 4-98 85 38
CHS-8x400 15 3/4" 400 7.5 4-105 120 55
CHS-8x450 17 3/4" 450 7.5 4-118 120 55
CHS-8x500 19 11/16" 500 7.5 4-450 120 55
CHS-8x750 29 9/16" 750 7.5 4-220 120 55
CHS-9x450 17 3/4" 450 9.0 4-118 175 80
CHS-9x530 21 1/16" 530 9.0 8-155 175 80
CHS-9x550 25 9/16" 550 9.0 8-160 175 80
CHS-9x650 27 1/2" 650 9.0 8-190 175 80
CHS-9x700 30" 700 9.0 10-205 175 80
CHS-9x760 36 1/4" 760 9.0 10-225 175 80
CHS-9x920 29 9/16" 920 9.0 10-265 175 80
CHS-9x1020 29 9/16" 1020 9.0 10-295 175 80
CHS-9x1150 29 9/16" 1150 9.0 10-310 175 80
CHS-9x1210 29 9/16" 1210 9.0 10-340 175 80
CHS-9x1350 29 9/16" 1350 9.0 10-380 175 80
CHS-10x450 17 3/4" 450 12.7 10-125 250 114
CHS-10x500 19 11/16" 500 12.7 12-150 250 114
CHS-12x300 11 5/8" 300 12.7 12-105 250 114
CHS-12x400 15 3/4" 400 12.7 12-155 250 114
CHS-12x540 21 1/4" 540 12.7 14-190 250 114
CHS-12x650 25 9/16" 650 12.0 14-190 250 114
CHS-12x750 29 9/16" 750 12.0 10-220 250 114
CHS-12x780 30 3/4" 780 12.7 14-230 250 114
CHS-13x540 21 1/4" 540 13.0 14-155 250 114
