Classification Floatless Relay
Model AFR-1
Dimensions 61H×49W×70D
Socker PS-08, PF-083A(E)
Sensing Mode High Sensing AFR-1H
Long Distance AFR-1L
Low Density AFR-1D
Two Lines AFR-1R
Rated Voltage AC(V): 110~240 50/60Hz
Indicator Operating Two LED's use for two status
Rated Voltage 85~110%
Second Voltage 8VAC (Except High sensing 24VAC)
Operate Resistance 4K Ωmin. (General)
Release Resistance 15K Ωmin. (General)
Response Time Operate: 80 Msec Max.
Release: 160 Msec Max.
Contact Rating 5A/ 250VAC (Resistiveload)
Length of Cable 1Km Max. (General)
Life
Mechanical 5×106times
Electrical 105times
Insulation Resistance 100mΩ (DC500V) Min.
Dielectric Strength 1500VAC, 50/60Hz for 1minute
Consumed Power 3.2VA
Ambient Temperature -10℃~+55℃
Ambent Huminity 45~85%RH
Weight 200g

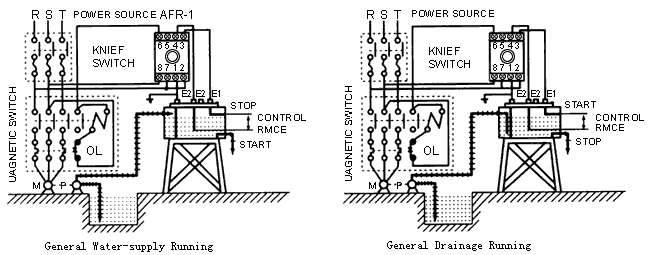

Connection Diagrams & Timing Chart

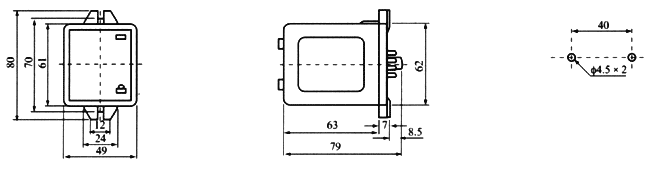

Dimension
AFR-1
Dimension
AFR-1
