H1 Fuse Switch Disconnector
H1
H2 Fuse Switch Disconnector
H2

Applications

  • H1 series of fuse disconnecting switch, are mainly used in circus with high short-circuit current and motor circuit as power switch, disconnecting switch or emergency switch.
  • Rated insulation voltage up to AC 50Hz 800V; Rated working voltage up to 690V; Rated working current up to 250A; Rated short-time withstand current (valid): 20Ith/1S. The switch complies with GB14048.3 and IEC/EN60947-3.

Design Features

  • The switch with half sealed structures is made up of two parts: the seat and cover (fuse holder). Through the window in the cover, it can observe the rated data of the fuse links and indicator status.
  • The switch should be matched with the appropriate size of fuse links accordingly. H1-160/1 is single-pole and H1-160 is three-pole, both can be matched with size NH000 and NH00 fuse links, H1-250/1, H1-400/1, H1-630/1 are single-pole and H1-250, H1-400, H1-630 are three-pole, They are matched with NH1, NH2, NH3 fuse links separately. The three-pole switch can be combined with the single-pole version with the same size into four-pole switch.
  • The switch has the features of small size, reliable operation, convenient installation and removal.
  • All of these products, except for conductive parts all are the finger-touch protection: IP20.
  • Compliance with GB14048.3 and IEC/EN60947-3.

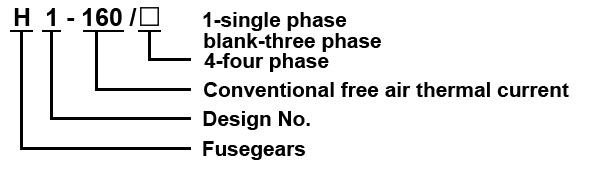

Model Meaning:

    Model Meaning
Table 4 Basic data of switch
Models Rated insulation voltage (V) Rated working voltage (V) Conventional free air thermal current (A) Fuse link Weight (g) Dimension (mm)
H1-160/1 800 400, 500, 690 160 NH00, NH000 290 Figure 2
H1-160 800 400, 500, 690 160 NH00, NH000 700 Figure 3
H1-160/4 800 400, 500, 690 160 NH00, NH000 990 Figure 3
H1-250/1 800 400, 500, 690 250 NH1 735 Figure 4
H1-250 800 400, 500, 690 250 NH1 1510 Figure 5
H1-250/4 800 400, 500, 690 250 NH1 2245 Figure 5
H1-400/1 800 400, 500, 690 400 NH2 1302 Figure 6
H1-400 800 400, 500, 690 400 NH2 3272 Figure 7
H1-400/4 800 400, 500, 690 400 NH2 4574 Figure 7
H1-630/1 800 400, 500, 690 630 NH3 1492 Figure 6
H1-630 800 400, 500, 690 630 NH3 3855 Figure 7
H1-630/4 800 400, 500, 690 630 NH3 5347 Figure 7

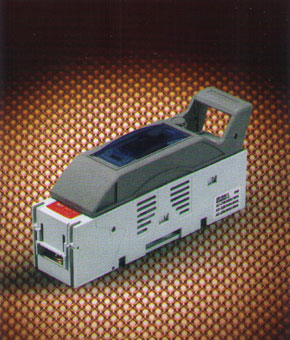

Fuse Switch Disconnector H1-160/1
Fuse Switch Disconnector H1-160/1 Fuse Switch Disconnector H1-160/1 Fuse Switch Disconnector H1-160/1 Fuse Switch Disconnector H1-160/1
Fuse Switch Disconnector H1-160/1 Fuse Switch Disconnector H1-160/1 Fuse Switch Disconnector H1-160/1 Fuse Switch Disconnector H1-160/1
Figure 2 (H1-160/1)

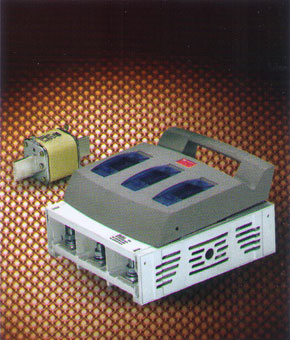

Fuse Switch Disconnector H1-160 H1-160/4 Fuse Switch Disconnector H1-160 H1-160/4 Fuse Switch Disconnector H1-160 H1-160/4 Fuse Switch Disconnector H1-160 H1-160/4
Fuse Switch Disconnector H1-160 H1-160/4 Fuse Switch Disconnector H1-160 H1-160/4 Fuse Switch Disconnector H1-160 H1-160/4 Fuse Switch Disconnector H1-160 H1-160/4
Figure 3 (H1-160, H1-160/4)
Fuse Switch Disconnector H1-250/1
Fuse Switch Disconnector H1-250/1 Fuse Switch Disconnector H1-250/1 Fuse Switch Disconnector H1-250/1 Fuse Switch Disconnector H1-250/1
Fuse Switch Disconnector H1-250/1 Fuse Switch Disconnector H1-250/1 Fuse Switch Disconnector H1-250/1 Fuse Switch Disconnector H1-250/1
Figure 4 (H1-250/1)
Fuse Switch Disconnector H1-250 H1-250/4 Fuse Switch Disconnector H1-250 H1-250/4 Fuse Switch Disconnector H1-250 H1-250/4 Fuse Switch Disconnector H1-250 H1-250/4
Fuse Switch Disconnector H1-250 H1-250/4 Fuse Switch Disconnector H1-250 H1-250/4 Fuse Switch Disconnector H1-250 H1-250/4 Fuse Switch Disconnector H1-250 H1-250/4
Figure 5 (H1-250, H1-250/4)
Fuse Switch Disconnector H1-400
Fuse Switch Disconnector H1-400/1 H1-630/1 Fuse Switch Disconnector H1-400/1 H1-630/1 Fuse Switch Disconnector H1-400/1 H1-630/1 Fuse Switch Disconnector H1-400/1 H1-630/1
Fuse Switch Disconnector H1-400/1 H1-630/1 Fuse Switch Disconnector H1-400/1 H1-630/1 Fuse Switch Disconnector H1-400/1 H1-630/1 Fuse Switch Disconnector H1-400/1 H1-630/1
Figure 6 (H1-400/1, H1-630/1)

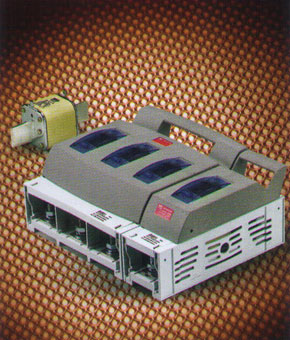

Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4 Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4 Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4 Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4 Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4
Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4 Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4 Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4 Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4 Fuse Switch Disconnector H1-400 H1-400/4 H1-630 H1-630/4
Figure 7 (H1-400, H1-400/4, H1-630, H1-630/4)
Table 5 The working current of the switch at different voltages and different applications
Models Rated working voltage (V) Rated working current (A) Application Fuse link The rated breaking capacity of the fuse links (KA)
H1-160/1 690 100 AC21B NH00, NH000 50
500 125 AC22B NH00 100
230/400 160 AC23B NH00 100
H1-160
H1-160/4
690 100 AC21B NH00, NH000 50
500 125 AC22B NH00 100
230/400 160 AC23B NH00 100
H1-250/1 690 160 AC21B NH1 50
500 200 AC22B NH1 100
230/400 250 AC23B NH1 100
H1-250
H1-250/4
690 160 AC21B NH1 50
500 200 AC22B NH1 100
230/400 250 AC23B NH1 100
H1-400/1 690 250 AC21B NH2 50
500 315 AC22B NH2 100
230/400 400 AC23B NH2 100
H1-400
H1-400/4
690 250 AC21B NH2 50
500 315 AC22B NH2 100
230/400 400 AC23B NH2 100
H1-630/1 690 400 AC21B NH3 50
500 500 AC22B NH3 100
230/400 630 AC23B NH3 100
H1-630
H1-630/4
690 400 AC21B NH3 50
500 500 AC22B NH3 100
230/400 630 AC23B NH3 100
Table 6 Rated open and breaking capacity of the switch
Rated working voltage (V) Rated working current (A) Application The rated breaking capacity of the fuse links (KA)
Connecting Breaking
I/Ie U/Ue COSΦ Ic/Ie Ur/Ue COSΦ
690 All current AC21B 1.5 1.05 0.95 1.5 1.05 0.95
500 All current AC22B 3 1.05 0.65 3 1.05 0.65
400 ≤100 AC23B 10 1.05 0.45 8 1.05 0.45
>100 AC23B 10 1.05 0.35 8 1.05 0.35
Note:
  • I for connecting current
  • U post connecting voltage
  • Ie rated working current
  • Ue rated working voltage
  • Ic breaking current
  • Ur recovery current
