H2 Fuse Switch Disconnector

Applications

• H2 series fuse disconnecting switch are mainly used in circuit with high short-circuit current and motor circuit as power switch, disconnecting switch or emergency switch.
• Rated insulation voltage up to AC 50Hz 1000V; Rated working voltage up to 690V; Rated working current up to 630A; Rated short-time withstand current (valid) : 20Ith/1S.
• The fuse disconnecting switch complies with GB14048.3 and IEC/EN60947-3 .

Design Features

• The switch with half sealed structures is made up of two parts: the seat and cover (fuse holder).
• Through the window in the cover, it can observe the rated data of the fuse links and indicator status.
• Installation: The switch molded designed.

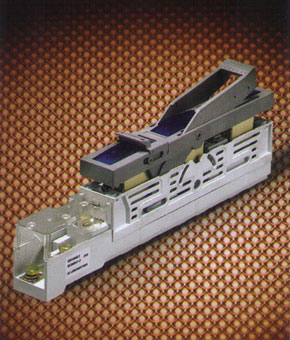

• H2-160(50mm in width), can be directly installed on 100mm bus bar through the input line. There are two type versions available: up output line and down output line, three phases make and break simultaneously, suitable for NH000 and NH00 fuse links.
• H2-250(102mm in width) can be directly installed on 185mm bus bar though the input line, it also can be installed on the supporter by two 12x18 installation holes. There are two types version available: up output line and down output line, three phases make and break simultaneously or separately, suitable for NH1 fuse links.

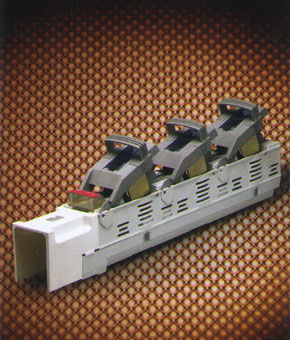

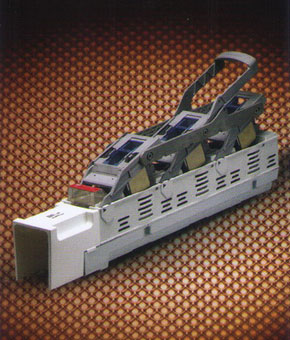

• H2-400(102mm in width) can be directly installed on 185mm bus bar though the input line, it also can be installed on the supporter by two 12x18 installation holes. There are two types version available: up output line and down output line, three phases make and break simultaneously or separately, suitable for NH1, NH2 fuse links.
• H2-600(102mm in width) can be directly installed on 185mm bus bar though the input line, it also can be installed on the supporter by two 12x18 installation holes. There are two types version available: up output line and down output line, three phases make and break simultaneously or separately, suitable for NH3 fuse links.

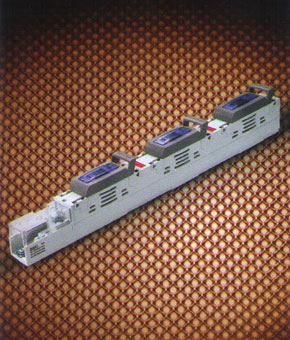

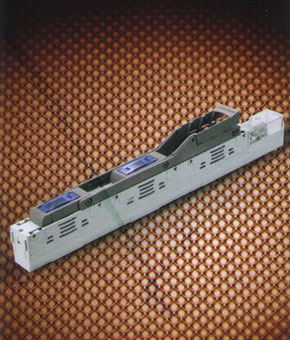

• H2-160/L(52mm in width) can be directly installed on 185mm bus bar though the input line, it also can be installed on the supporter by two 12x18 installation holes. There are two types version available: up output line and down output line, three phases make and break simultaneously or separately, suitable for NH000 and NH00 fuse links.
• The switch has the features of small size, reliable operation, convenient installation and removal.
• All of these products, except for conductive parts all are the finger-touch protection: IP20.
• Compliance with GB14048.3 and IEC/EN60947-3.

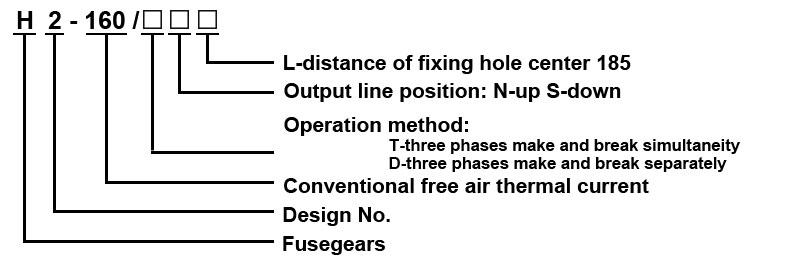

Model Meaning:

Table 7 Basic data of switch

Models	Sturcture	Rated insulation voltage (V)	Rated working voltage (V)	Conventional free air thermal current (A)	Fuse link	Weight (g)	Dimension (mm)
H2-160/TN	Installation on busbar, three phases make andbreak simultaneity, up output line	1000	400, 500, 690	160	NH00, NH000	116	Figure 8
H2-400/TN	Installation on busbar or supporter, three phasesmake and break simultaneity, up output line	1000	400, 500, 690	400	NH1, NH2	5678	Figure 10
H2-630/TN		1000	400, 500, 690	630	NH3	6168	Figure 10
H2-160TNL		1000	400, 500, 690	160	NH00, NH000	1674	Figure 16
H2-160/TS	Installation on busbar, three phases make andbreak simultaneity, down output line	1000	400, 500, 690	160	NH00, NH000	1166	Figure 9
H2-400/TS	Installation on busbar or supporter, three phasesmake and break simultaneity, down output line	1000	400, 500, 690	400	NH1, NH2	5678	Figure 11
H2-630/TS		1000	400, 500, 690	630	NH3	6168	Figure 11
H2-160/TSL		1000	400, 500, 690	160	NH00, NH000	1674	Figure 17
H2-400/DN	Installation on busbar or supporter, three phasesand make and break separately, up output line	1000	400, 500, 690	400	NH1, NH2	5540	Figure 12
H2-630/DN	Installation on busbar or supporter, three phasesmake and break simultaneity, up output line	1000	400, 500, 690	630	NH3	6030	Figure 12
H2-160/DNL		1000	400, 500, 690	160	NH00, NH000	1543	Figure 14
H2-400/DS	Installation on busbar or supporter, three phasesmake and break simultaneity, down output line	1000	400, 500, 690	400	NH1, NH2	5540	Figure 13
H2-630/DS		1000	400, 500, 690	630	NH3	6030	Figure 13
H2-160/DSL		1000	400, 500, 690	160	NH00, NH000	1543	Figure 15

Note: H2-250 is same as H2-400 Table 8 The working current of the switch at different voltages and different applications

Models	Rated working voltage (V)	Rated working current (A)	Application	Fuse link	The rated breaking capacity of the fuse links (KA)
H2-160	690	80	AC21B	NH000	50
	500	100	AC22B		100
	400	100	AC23B		100
	690	100	AC21B	NH00	50
	500	125	AC22B		100
	400	160	AC23B		100
H2-400	690	160	AC21B	NH1, NH2	50
	690	200	AC21B		50
	690	250	AC21B		50
	500	315	AC22B		100
	400	400	AC23B		100
H2-630	690	400	AC21B	NH3	50
	500	500	AC22B		100
	400	630	AC23B		100
H2-160/L	690	80	AC21B	NH000	50
	500	100	AC22B		100
	400	100	AC23B		100
	690	100	AC21B	NH00	50
	500	125	AC22B		100
	400	160	AC23B		100

Table 9 Rated open and breaking capacity of the switch

Rated working voltage (V)	Rated working current (A)	Application	The rated breaking capacity of the fuse links (KA)
			Connecting			Breaking
			I/Ie	U/Ue	COSΦ	Ic/Ie	Ur/Ue	COSΦ
690	All current	AC21B	1.5	1.05	0.95	1.5	1.05	0.95
500	All current	AC22B	3	1.05	0.65	3	1.05	0.65
400	≤100	AC23B	10	1.05	0.45	8	1.05	0.45
	>100	AC23B	10	1.05	0.35	8	1.05	0.35

Note:

• I for connecting current
• U post connecting voltage
• Ie rated working current
• Ue rated working voltage
• Ic breaking current
• Ur recovery current
