H.V. HRC Current-Limiting Fuses type XRNP for Motor Protection

Home
S for Transformer Protection
S
W for motor protection
W
F for transformer protection
F
O for Transformer Protection
O

Applications

  • H.V HRC current-limiting fuses type XRNP for transformer protection is mainly used in AC 50Hz, rated voltage 3.6-40.5kV, rated current up to 6.3A circuit for protection transformers from overload and shirt-circuit.
  • It conforms to IEC282-1, BS and GB15166.2.

Design Features

  • XRNP type H.V HRC current-limiting fuses is insert installation. It is convenient for install and removal. The fuse link made of high-resistance metal wire and low-resistance metal wire. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand. The fuse tube is made from heat resistance, high duty ceramic or epoxy glass. When fault circuit happens, the fuse link melts causing arc, quartz sand extinguish the arc immediately, signaling the melting or automatically cutting the circuit.

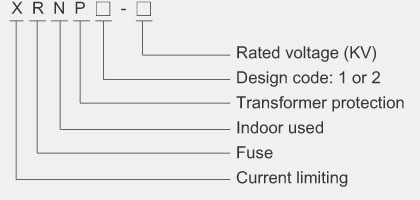

Mode And Implication

    Department model
    Mode And Implication
Basic Data
Models Ratedvoltage (KV) Rated current of the fuse links(A) Rated breakingcurrent (KA) Dimensions (mm) Weight (Kg)
Department Fig. L
XRNP1 3.6 0.5, 1, 2, 3.15, 6.3 50 Figure 1 142 0.19
XRNP1 7.2 0.5, 1, 2, 3.15, 6.3 50 142(195) 0.19(0.22)
XRNP1 12 0.5, 1, 2, 3.15 40 195 0.22
XRNP1 24 0.5, 1, 2, 3.15 40 355 0.43
XRNP1 40.5 0.5, 1, 2, 3.15 50 465 0.55
XRNP2 12 0.5, 1, 2, 3.15 50 Figure 2 1.12

Dimensions

Dimensions Dimensions Dimensions Dimensions
Dimensions Dimensions Dimensions Dimensions
Dimensions Dimensions Dimensions Dimensions

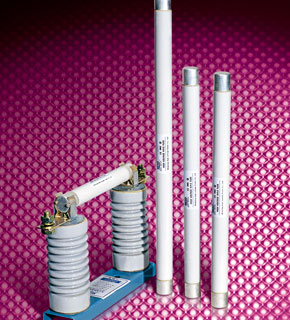

Figure 1 12KV H.V. Fuse Type XRNP1
Current-Limiting Fuses XRNP1
Dimensions Dimensions Dimensions Dimensions
Dimensions Dimensions Dimensions Dimensions
Dimensions Dimensions Dimensions Dimensions

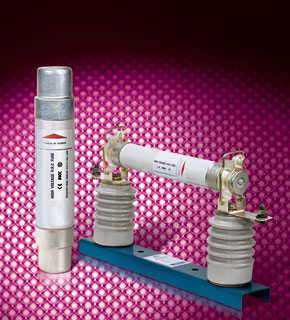

Figure 1 12KV H.V. Fuse Type XRNP2
Current-Limiting Fuses XRNP2

Characteristics Curve

Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1
Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1
Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1 Time-current characteristicsof 12KV fuse links type XRNP1
Time-current characteristicsof 12KV fuse links type XRNP1
Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1
Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1
Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1 Cut-off current characteristicsof 12KV fuse links type XRNP1
Cut-off current characteristicsof 12KV fuse links type XRNP1
