Bolt Connected Square Pipe Type Fast-acting Fuse Links For Semiconductor protection

Applications

This series of fuses are mainly used in circuits of AC 50Hz,rated voltage of 2000V and rated current of 2500A, to protect thesemiconductor components and the whole unit from circuit short.(aR).
The breaking capacity of the fuses is up to 100KA.
The fuses are compliant with the IEC269-1/IEC269-4 andGB13539.1/GB13539.4 .

Design Features

The variable cross-section fuse element made from puresilver sheets are sealed in the melting tube made of high-densityporcelain; The fuse tube is filled with chemicallly treated high-purity quarts as arc-extinguishing medium; The two ends of themelting body are connected to the (knife) contactor by dot welding;Both knife contactors and board contacts are available; A striker/indicator may be installed to the fuse link; When the fuse linkbreaks, signals are sent out in the case of an indicator, or theswitch is pushed to cut the circuit in the case of a striker.

Table 1

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)									Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	A	B	C	D	E	F	H	Φd	Weight (g)

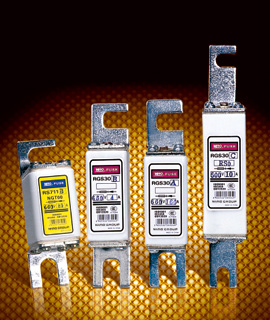

RS711B	NGT00 HLS00	380/800	32 ~ 200	Figure 1	50	77	100	29	27	2	51	11	198.5
RGS30A	3NE87	660	10 ~ 160	Figure 1	50	77	98	21	20	2	38	9	122
RGS30B	--	660	10 ~ 160	Figure 1	50	77	98	21	20	2	33.5	9	110
RGS30C	NS0-250V	250	30 ~ 50	Figure 1	50	100	115	25	16	2	45	7	138
RGS30C	RS0-500V RS3-500V	500	10 ~ 50	Figure 1	70	120	135	25	16	2	45	7	163

Figure 1

RS711B, NGT00 HLS00, RGS30A, 3NE87, RGS30B, RGS30C, NS0-250V, RGS30C, RS0-500V, RS3-500V

Table 2

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)									Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	A	B	C	D	E	F	H	Φd	Weight (g)

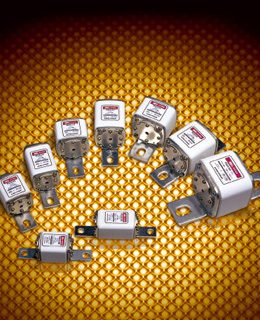

RGS36	RS0-250V	250	80 ~ 100	Figure 2	50	100	120	40	20	2	43	7*10.5	277.5
RGS32	RS0-250V	250	150 ~ 200	Figure 2	52	100	125	46	29	3	50	9*13.5	400
RGS33	RS0-250V	250	350	Figure 2	52	100	130	55	30	3	60	9*13.5	542
RGS34	RS0-250V	250	480	Figure 2	56	100	135	66	40	5	72	13*19.5	950
RGS36	RS0-500V	500	80 ~ 100	Figure 2	70	120	140	40	20	2	43	7*10.5	336.5
RGS32	RS0-500V	500	150 ~ 200	Figure 2	72	120	145	46	29	3	50	9*13.5	482
RGS33	RS0-500V	500	200 ~ 350	Figure 2	72	120	150	46	30	3	60	9*13.5	670
RGS34	RS0-500V	500	480	Figure 2	76	120	155	66	40	5	72	13*19.5	1058
RGS33	RS0-750V	750	250 ~ 320	Figure 2	72	120	150	55	30	3	60	9*13.5	678
RGS34	RS0-750V	750	350	Figure 2	76	120	155	66	40	5	72	13*19.5	1080
RGS36	RS3-500V	500	80 ~ 100	Figure 2	70	120	140	40	20	2	43	7*10.5	330
RGS32	RS3-500V	500	150	Figure 2	72	120	145	46	29	3	50	9*13.5	482
RGS33	RS3-500V	500	200	Figure 2	72	120	150	555	30	3	60	9*13.5	678
RGS34	RS3-500V	500	250	Figure 2	76	120	155	66	40	5	72	13*19.5	1080
RGS34	RS3-500V	500	300	Figure 2	76	146	172	66	40	5	66	13*19.5	1080

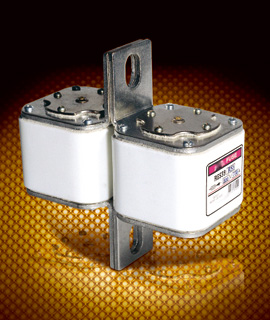

RGS39	RS3-500V	500	500	Figure 2	76	136	173	85	40	5	91	17*24	1760
RGS34	RS3-750V	750	200 ~ 250	Figure 2	76	120	155	66	40	5	75	13*19.5	1080
RGS34	RS3-750V	750	600	Figure 2	76	120	155	66	40	10	145	13*19.5	1730

Figure 2

RGS32, RGS33, RGS34, RGS36, RGS39, RS0-250V, RS0-500V, RS3-500V, RS3-750V

Table 3

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)	Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	Weight (g)
RGS39	RS3-750V	750	700	Figure 3	1730

Figure 3

Table 4

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)								Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	A	B	C	D	E	F	Φd	Weight (g)
RS71B	LK-NES	800	50 ~ 200	Figure 4	76	104	135	43	22	6	10.5	370

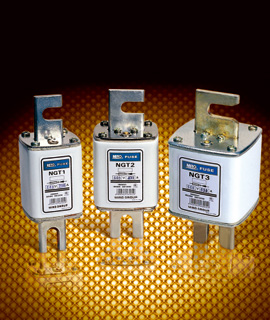

NGT1	RS6-1	380/660/1000	100 ~ 250	Figure 4	68	110	140	48	25	6	10.5	458
NGT2	RS6-2	380/660/1000	200 ~ 400	Figure 4	68	110	140	58	32	6	10.5	654
NGT3	RS6-3	380/660/1000	355 ~ 630	Figure 4	68	110	140	67	38	6	10.5	920

Figure 4

RS71B, LK-NES, NGT1, RS6-1, NGT2, NS6-2, NGT3, RS6-3

Table 5

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)	Weight(g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	Weight(g)

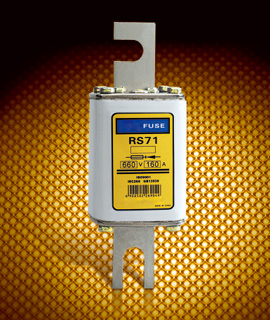

RS71	NG1	660	80 ~ 160	Figure 5	340

Figure 5

Table 6

Types

Rated voltage(V)

Rate current(A)

Dimension/ Size (mm)

Weight(g)

Ours

Cross reference

Fig.

Φd

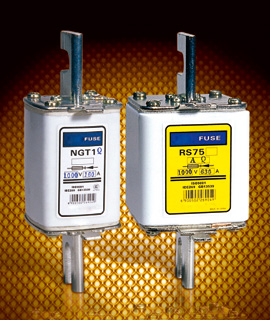

NGT1Q

3NE32..

660/1000

100 ~ 250

Figure 6

108

140

10.5

465

RS75AQ

3NE33..

660/1000

300 ~ 630

Figure 6

108

140

12.5

730

Figure 6

Table 7

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)									Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	A	B	C	D	E	F	H	Φd	Weight (g)
RS72B	A1-66C-D8	660	200 ~ 400	Figure 7	44	76	108	50	25	6	68	10.5	360.5
RS72C	A1-66C-D1	660	315 ~ 400	Figure 7	44	108	140	50	25	6	68	10.5	383
RS73A	A2-66C-D8	660	250 ~ 630	Figure 7	44	76	108	60	32	6	78	10.5	527
RS73B	A2-66C-D1	660	250 ~ 630	Figure 7	44	108	140	60	32	6	78	10.5	551
RS73D	--	660	200 ~ 400	Figure 7	44	92	127	60	32	6	78	13	550
RS74A	A3-66C-D8	660	400 ~ 800	Figure 7	44	76	108	73	38	6	78	12.5	810
RS74B	A3-66C-D1	660	500 ~ 800	Figure 7	44	108	140	73	38	6	90	12.5	860
RS74D	--	660	500 ~ 800	Figure 7	44	92	127	73	40	6	90	13	944
RS75A	--	660/1000	450 ~ 800	Figure 7	66	108	140	60	32	6	90	12.5	700
RS75B	--	660/1000	500 ~ 800	Figure 7	76	108	140	60	32	6	78	12.5	770
RS76AYK	170M61...	660/1000	630 ~ 1000	Figure 7	66	108	140	72	38	6	78	10.5	1045
RS76C	170M62...	660/1000	630 ~ 1000	Figure 7	76	108	140	72	38	6	90	12.5	1436
RS450	3NET	1500	450	Figure 7	172	208	240	74	32	6	92	12.5	1965

Note:

1) : Openings on knives are radial in RS76D, RS74SD.

Figure 7

RS72B,RS72C, RS73A, RS73B, RS73D, RS74A, RS74B, RS74D, RS75A, RS75B, RS76AYK, RS76C, RS450

Table 8

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)									Weight(g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	A	B	C	D	E	F	H	Φd	Weight(g)

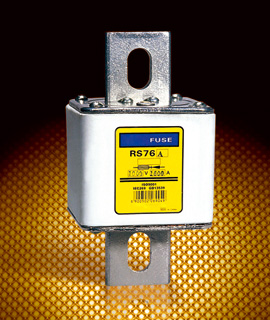

RS76A	--	660/1000	500 ~ 800	Figure 8	66	102	140	72	38	6	90	12.5 x 22	1055
RS76B	--	660/1000	500 ~ 800	Figure 8	66	108	140	72	38	6	90	12.5 x 22	1040
RS89B	--	1000	1600	Figure 8	69	107	150	105	50	16	120	14 x 23	2800

Figure 8

Table 9

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)	Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	Weight (g)

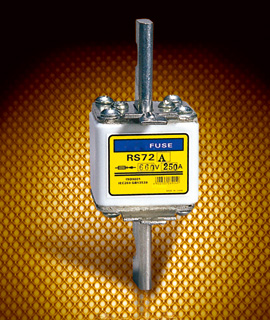

RS72A(Z)	--	660	80 ~ 315	Figure 9	238

Figure 9

Table 10

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)						Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	A	C	D	H	md	Weight (g)
RS550	--	2000	550	Figure 10	130	136	73	85	12	1960
NGT3M	--	380/660/1000	355 ~ 630	Figure 10	67	76	67	85	12	910
RS77	A1-66C-TS	660	200 ~ 400	Figure 10	42	50	50	68	8	354
RS77A	A0-66C-TS	660	80 ~ 160	Figure 10	39	47	40	58	8	225
RS77B	A2-66C-TS	660	400 ~ 630	Figure 10	42	50	60	78	10	518
RS77C	A3-66C-TS	600	630 ~ 1000	Figure 10	45	54	74	92	12	865
RS77H	--	1000	200 ~ 400	Figure 10	66	76	50	68	8	528
RS78	3NE43..6B	660	315 ~ 500	Figure 10	66	77	60	77	10	660
RS79	--	1000	400 ~ 1000	Figure 10	92	106	74	92	12	1655
RS79A	170M34..	660	200 ~ 400	Figure 10	46	52	43	61	8	277
RS79C	--	1000	400 ~ 1000	Figure 10	77	85	74	92	12	1325
RS79D	140M63..	1000	800 ~ 1000	Figure 10	67	75	74	92	12	1170
RS79E	170M64..	1000	630 ~ 1000	Figure 10	75	91	74	92	12	1420
RS550Z	--	2000	550	Figure 10	135	143	74	92	12	1985
RS82	CS5F	500	75 ~ 200	Figure 10	40	47	47	70	8	325
RS83	CS5F	500	200 ~ 400	Figure 10	43	51	57	82	8	450
RS84	CS5F	500	450 ~ 630	Figure 10	42	53	72	92	10	830
RS85	CS10F	500	150 ~ 250	Figure 10	66	76	60	77	10	740
RS86	3NE64..	500	300 ~ 500	Figure 10	66	77	72	92	10	1110
RS86A(Z)	RSF-4	500/800	800 ~ 1250	Figure 10	68	78	85	130	12	1200
RS87	RSF-5	500/1000	125 ~ 1600	Figure 10	70	80	105	150	16	1320
RS87A(Z)	RSF-6	800/1000	1600 ~ 2500	Figure 10	81	91	120	165	16	2216
RS88A	--	660	800 ~ 1600	Figure 10	78	90	105	127	16	1240

Figure 10

RS550, NGT3M, RS77, RS77A, RS77B, RS77C, RS77H, RS78, RS79, RS79A, RS79C, RS79D, RS79E, RS550Z, RS82, RS83, RS84, RS85, RS86, RS86A(Z), RS87, RS87A(Z), RS88A

Table 11

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)	Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	Weight (g)

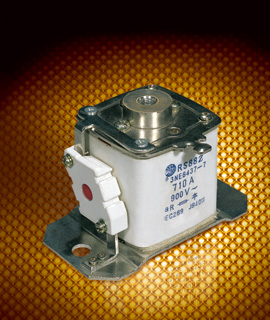

RS88	--	660	630 ~ 800	Figure 11	955

Figure 11

Table 12

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)	Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	Weight (g)

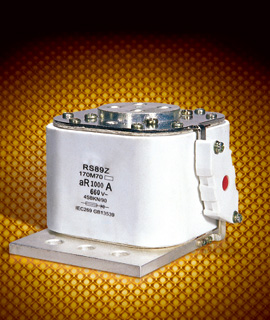

RS89	170m70..	1000	1000 ~ 1800	Figure 12	2390

Figure 12

Table 13

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)	Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	Weight (g)

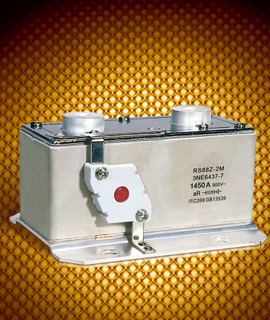

RS88-2M	--	660	1000 ~ 1600	Figure 13	2335

Figure 13

Table 14

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)										Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	A	B	C	D	E	F	H	H1	md	Weight (g)

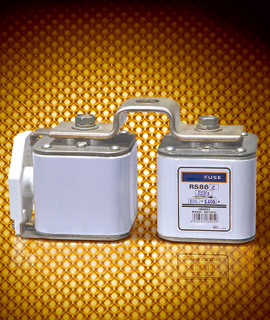

RS85-2H	--	1000	1000	Figure 14	60	72	132	95	36	146	93	68	10	1500
RS86-2H	RSF-3-P2K	1000	1400	Figure 14	73	92	162	140	40	180	102	76	10	2504

Figure 14

Table 15

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)	Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	Weight (g)

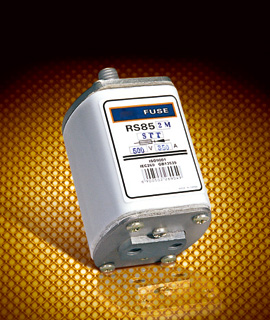

RS85-2M	--	500	100 ~ 315	Figure 15	710

Figure 15

Table 16

Types		Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)								Weight (g)
Ours	Cross reference	Rated voltage(V)	Rate current(A)	Fig.	A	B	C	D	H	H1	Md	Weight (g)
RS77C-2M	--	660	1000	Figure 16	75	100	185	18	55	47	12	2700
RSH20	--	2000	1000 ~ 2500	Figure 16	75	100	185	18	140	130	10	3890
