Screw Base Type Fuse Links

Applications

Protection against overload and short-circuit in electric lines(type gG), also available for protection of semiconductor parts andequipments against short-circuit (type aR) and protection of motors(type aM).
Rated voltage up to 1140V; Rated current up to 630A; Workingfrequency 50Hz AC; Rated breaking capacity up to 50KA. Compliantwith GB13539 and IEC269.

Design Features

Variable cross-section fuse element made from pure metalsealed in cartridge made from high-duty ceramic. Fuse tube filledwith chemically treated high-purity quartz sand as arc-extinguishingmedium. Indicator springs out when fuse cuts to give caution.

Table 1

Types				Size	Rated voltage(V)	Rate current(A)	Dimension(mm)					Weight(g)
Ours		Cross-reference					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				Fig.	ΦA	ΦC	ΦD	L

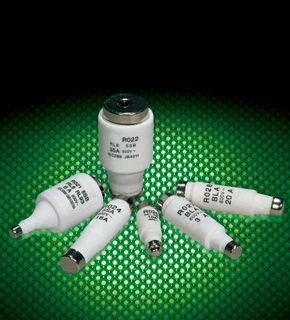

RO21	RS21	5SB E27 RL6-25	5SD	DII	500	2 ~ 6	Figure 1	6	22	13	50	24.8
						8 ~ 10	Figure 1	8	22	13	50
						13	Figure 1	8	22	15	50
						16	Figure 1	10	22	15	50
						20	Figure 1	12	22	15	50
						25	Figure 1	14	22	15	50
RO22	RS22	5SB E33 RL6-63	5SD	DIII	500	30 ~ 40	Figure 1	16	27	20	50	48.1
						50	Figure 1	18	27	20	50
						63	Figure 1	20	27	20	50
RO23	RS23	--	--	DIII	500	2 ~ 6	Figure 1	6	27	20	70	64
						8 ~ 10	Figure 1	8	27	20	70
						16	Figure 1	10	27	20	70
						20	Figure 1	12	27	20	70
						25	Figure 1	14	27	20	70
						35	Figure 1	15	27	20	70
						50	Figure 1	18	27	20	70
						63	Figure 1	20	27	20	70
RO24	RS34	E16 5SA	--	--	500	2 ~ 6	Figure 1	6	12.5	11.3	50	11.7
						10	Figure 1	8	12.5	11.3	50
						16	Figure 1	10	12.5	11.3	50
						20 ~ 25	Figure 1	12	12.5	11.3	50
RO27	RS27	BLA	BLC	--	600	3 ~ 10	Figure 1	8	12.5	11.5	50	13.1
RO28	RS28	BLA	BLC	--	600	15 ~ 20	Figure 1	10	12.5	11.5	50	14.5
RO29	RS29	BLA	BLC	--	600	25 ~ 40	Figure 1	14	12.5	11.5	50	16.4

RO21, RS21, RO22, RS22, RO23, RS23, RO24, RS34, RO27, RS27, RO28, RS28, RO29, RS29

RO21, RS21, RO22, RS22, RO23, RS23, RO24, RS34, RO27, RS27, RO28, RS28, RO29, RS29

RO21, RS21, RO22, RS22, RO23, RS23, RO24, RS34, RO27, RS27, RO28, RS28, RO29, RS29

RO21, RS21, RO22, RS22, RO23, RS23, RO24, RS34, RO27, RS27, RO28, RS28, RO29, RS29

Figure 1

Screw Base Type Fuse Links, RO21, RS21, RO22, RS22, RO23, RS23, RO24, RS34, RO27, RS27, RO28, RS28, RO29, RS29

Table 2

Types				Size	Rated voltage(V)	Rate current(A)	Dimension(mm)						Weight(g)
Ours		Cross-reference					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				Fig.	ΦA	ΦB	ΦC	ΦD	L

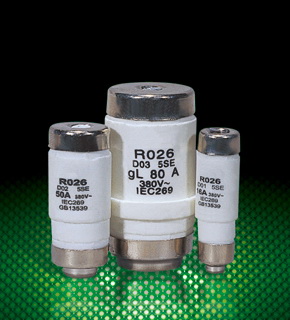

RO26	RS26	E14, RL8, 5SE, E18	-	D01	380	2 ~ 6	Figure 2	5	7.3	10.6	10	36	12.7
						10	Figure 2	5	8.5	10.6	10	36
						16	Figure 2	5	9.7	10.6	10	36
				D02		20	Figure 2	8.5	11	15	14	36	13.8
						25	Figure 2	8.5	12	15	14	36
						35	Figure 2	8.5	13.3	15	14	36
						50	Figure 2	8.5	14.5	15	14	36
						63	Figure 2	8.5	16	15	14	36
				D03		80	Figure 2	17	22	22	21	43	15.6
				D03		100	Figure 2	17	25	22	21	43	15.6

RO26, RS26

RO26, RS26

RO26, RS26

RO26, RS26

Figure 2

RO26, RS26

Table 3

Types				Size	Rated voltage(V)	Rate current(A)	Dimension(mm)					Weight(g)
Ours		Cross-reference					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				Fig.	ΦA	ΦB	ΦC	L

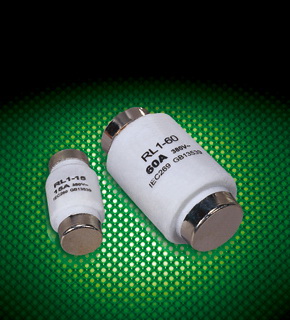

RL1-15	RLS1-15	--	--	--	380	2 ~ 15	Figure 3	13	16.5	13	32	13
RL1-60	RLS1-60	--	--	--	380	20~60	Figure 3	19	26.5	19	49	50.7

RL1-15, RLS1-15, RL1-60, RLS1-60

RL1-15, RLS1-15, RL1-60, RLS1-60

RL1-15, RLS1-15, RL1-60, RLS1-60

RL1-15, RLS1-15, RL1-60, RLS1-60

Figure 3

RL1-15, RLS1-15, RL1-60, RLS1-60

Table 4

Types				Size	Rated voltage(V)	Rate current(A)	Dimension(mm)						Weight(g)
Ours		Cross-reference					Dimension(mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)				Fig.	ΦA	ΦB	ΦC	ΦD	L
RL1-100	RLS1-100	--	--	--	380	50 ~ 100	Figure 4	6.5	27.5	32.5	27.5	60	92.8
RO201	RS201	5SB BLA RL6-100	--	DIV	600	80	Figure 4	5	--	33.5	28.5	63	112.2
RO201	RS201	5SB BLA RL6-100	--	DIV	600	100	Figure 4	7	--	33.5	28.5	63	115
RO202	RS202	5SB BLA	--	DV	600	150 ~ 350	Figure 4	8	--	45	38	63	200.5
RO203	RS203	5SB BLA	--	--	600	400 ~ 630	Figure 4	10	--	60	50	63	320

RL1-100, RLS1-100, RO201, RS201, RO202, RS202, RO203, RS203

RL1-100, RLS1-100, RO201, RS201, RO202, RS202, RO203, RS203

RL1-100, RLS1-100, RO201, RS201, RO202, RS202, RO203, RS203

RL1-100, RLS1-100, RO201, RS201, RO202, RS202, RO203, RS203

Figure 4

RL1-100, RLS1-100, RO201, RS201, RO202, RS202, RO203, RS203

Table 5

Types				Size	Rated voltage(V)	Rate current(A)	Dimension(mm)	Weight(g)
Ours		Cross-reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)				Fig.

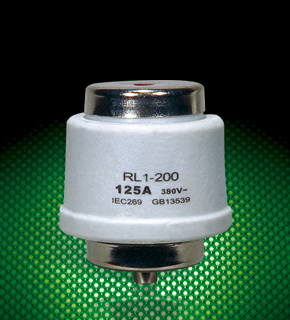

RL1-200	RLS1-200	--	--	--	380	160 ~ 200	Figure 5	204

Figure 5

RL1-200, RLS1-200

Table 6

Types				Size	Rated voltage(V)	Rate current(A)	Dimension(mm)	Weight(g)
Ours		Cross-reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)				Fig.

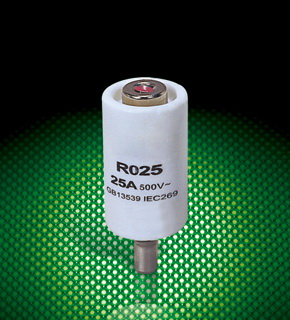

RO25	RS25	--	--	--	500	2 ~ 25	Figure 6	31.2

RO25, RS25

RO25, RS25

RO25, RS25

RO25, RS25

Figure 6

RO25, RS25

Table 7

Types				Size	Rated voltage(V)	Rate current(A)	Dimension(mm)	Weight(g)
Ours		Cross-reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)				Fig.

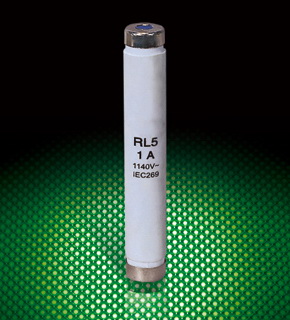

RL5-40	--	--	--	--	1140	2 ~ 40	Figure 7	22

RL5-40

RL5-40

RL5-40

RL5-40

Figure 7

RL5-40

Characteristics Curve

Time-current rang of “gG” fuse links

Time-current rang of “gG” fuse links

Breaking current characteristics curve of “gG” fuse links
