Square Pipe Fuse Links With Knife Contacts

Applications

Protection aqainst overload and short-circuit in electric lines(type gG), also available for protection of semiconductor parts andequipments against short-circuit (type aR) and protection of motors(type aM).
Rated voltage up to 1140V; Rated current up to 1250A;Working frequency 50Hz AC; Rated breaking capacity up to120KA. Compliant with GB13539 and IEC269.

Design Features

Variable cross-section fuse element made from pure copperor silver sealed in cartridge made from high-duty ceramic. Fusetube filled with chemically treated high-purity quartz sand as arc-extinguishing medium. Dot-welding of fuse element ends to theterminals ensures reliable electric connection and forms insertknife type contacts. Indicator or striker may be attached to the fuselink to show cutout of fuse or to give various signals and to cut thecircuit automatically.

Table 1

Types				Rated voltage(V)	Rate current	Dimension/ Size (mm)		Weight (g)
Ours		Cross reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.

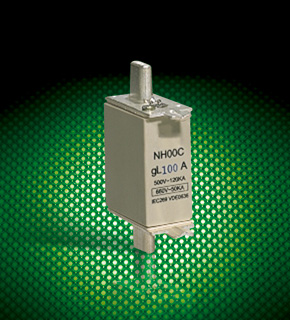

NH00C	--	--	--	500/660	10 ~ 100	000	Figure 1	138

Figure 1

Table 2

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)							Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.	A	B	C	D	H
NH00	RS31	--	--	500/660	10 ~ 160	00	Figure 2	78	50.5	15	30	60	201
NH0	--	--	--	500/660	6 ~ 160	00	Figure 2	125	67	15	30	60	267

Figure 2

Table 3

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)							Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.	A	B	C	D	H

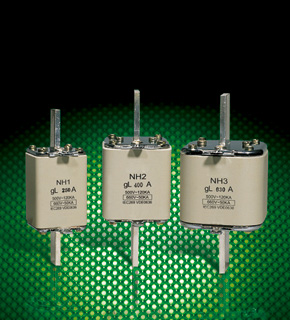

NH1	RS32	--	--	500/660	32 ~ 250	1	Figure 3	135	67	20	46	58.5	447
NH2	RS33	--	--	500/660	80 ~ 400	2	Figure 3	150	68	30	58.5	68.5	727
NH3	RS34	--	--	500/660	160 ~ 630	3	Figure 3	150	68	36	70	82	975

Figure 3

Table 4

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)		Weight (g)
Ours		Cross reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.

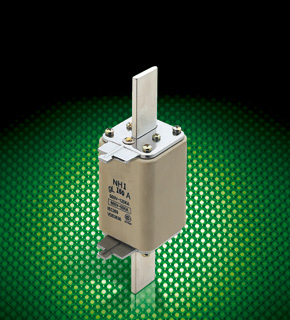

NH1-S	--	--	--	500/660	16 ~ 160	1	Figure 4	312

Figure 4

Table 5

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)		Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.

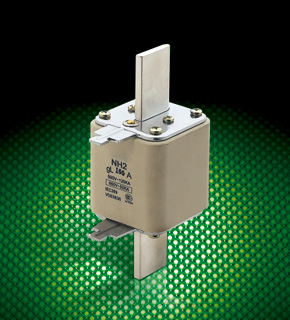

NH2-S	--	--	--	500/660	35 ~ 250	2	Figure 5	458
NH3-S	--	--	--	500/660	200 ~ 400	3	Figure 5	727

Figure 5

Table 6

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)							Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.	A	B	C	D	H
RO30A	RS30A	NT00C	--	500/660	4 ~ 100	000	Figure 6	78	49	15	21	48	123
RO30B	RS30B	NT00C	--	500/660	4 ~ 100	000	Figure 6	78	49	15	21	48	117
RO30C	RS30C	3NA3	3NE18..	500/660	10 ~ 100	000	Figure 6	78	49	15	21	52.5	132
RO31A	RS31A	PH00	--	500/660	10 ~ 160	00	Figure 6	78	49	15	30	53	178.5
RO31B	RS31B	NT0	3NE41..	500/1140	6 ~ 160	0	Figure 6	125	68	15	29	61.5	278
RO31C	RS31C	NT1	--	500	32 ~ 200	1	Figure 6	135	38	15	29	61.5	293.5

Figure 6

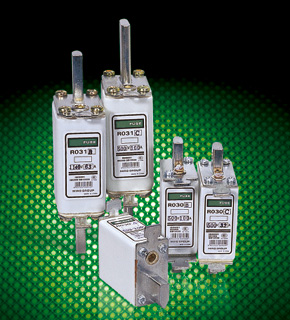

RO30A, RS30A, RO30B, RS30B, RO30C, RS30C, RO31A, RS31A, RO31B, RS31B, RO31C, RS31C

Table 7

Types

Rated voltage(V)

Rate current(A)

Dimension/ Size (mm)

Weight (g)

Ours

Cross reference

General (gG)

Fast(aR)

General (gG)

Fast(aR)

Size

Fig.

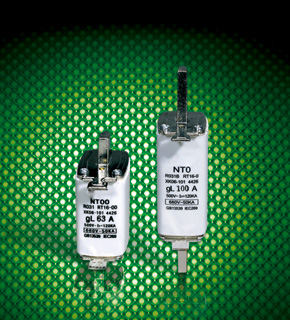

NT00

RS31

RT16-00

3NE80..

500/660

6 ~ 160

Figure 7

175

NT0

RT16-0

500/660

6 ~ 160

Figure 7

125

252

Figure 7

Table 8

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)							Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.	A	B	C	D	H
RO32	RS32	NT1, RT16-1, 3NA1, RT20-1	3NE12..	500/660	32 ~ 250	1	Figure 8	135	68	20	48	60	455
RO32A	RS32A	--	--	1140	200		Figure 8	172	110	19.5	44	58	570
RO32B	RS32B	NT1, RT16-1	--	500	250	1	Figure 8	135	68	20	40	68	393
RO33	RS33	NT2, RT16-2, 3NA1, RT20-2	3NE13..	500/660	80 ~ 400	2	Figure 8	150	68	25	58	70	650
RO33B	RS33B	RT16-2	--	500	400	2	Figure 8	150	68	25	52	71	580
RO34	RS34	NT3, RT16-3, NH3, RT20-3	3NE14..	500/660	160 ~ 630	3	Figure 8	150	68	32	67	80	880
RO35	RS35	--	--	500	6 ~ 160	1	Figure 8	135	68	20	30	53	249
RO36	RS36	EAPO	--	500	32 ~ 200		Figure 8	135	68	20	40	59	356
RO39A	RS39A	NT4a	--	380/500	500 ~ 1250	4a	Figure 8	200	90	50	97	113	2140

Figure 8

RO32, RO32A, RO32B, RO33, RO33B, RO34, RO35, RO36, RO39A, RS32, RS32A, RS32B, RS33, RS33B, RS34, RS35, RS36, RS39A

Table 9

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)										Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.	A	B	C	D	G	E	F	H
RO34K	RS34K	--	3NC8	500/660	150 ~ 630		Figure 9	140	68	32	70	6	108	10.5	85	810
RO38	RS38	--	3NE3626	--	200 ~ 630		Figure 9	160	86	32	70	6	126	11	81.5	1050
RO39	RS39	NT4, RT17	--	500	500 ~ 1250	4	Figure 9	200	90	50	97	8	150	16.5	113	2470
RO39B	RS39B	NT4B, RT17	--	500	500 ~ 1000	4	Figure 9	200	79	50	87.5	8	150	17	114.5	2100

Note: The joint holes of two-horizontal type is allowed to be changed to one horizontal one straight type or twostraight type.

Figure 9

RO34K, RO38, RO39, RO39B, RS34K, RS38, RS39, RS39B

Table 10

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)		Weight(g)
Ours		Cross-reference
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.

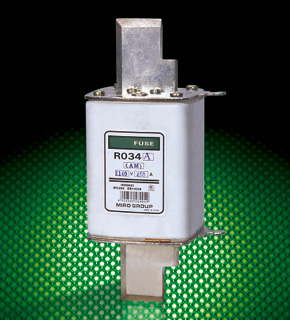

RO34A	RS34A	8SY5023	--	1140	450	--	Figure 10	1066

Figure 10

Table 11

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)										Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.	A	B	C	D	E	F	G	H
RO31Z	RS31Z	RT16A-00	--	500/660	35 ~ 125	00	Figure 11	78	49	15	29	15	22.5	--	59.5	183
RO32Z	RS32Z	RT16A-1	--	500/660	200 ~ 250	1	Figure 11	135	68	20	48	25	14.5	16	60	390
RO33Z	RS33Z	RT16A-2	--	500/660	315 ~ 400	2	Figure 11	150	68	25	58	30	14.5	19	70	683
RO34Z	RS34Z	RT16A-3	--	500/660	500 ~ 630	3	Figure 11	150	68	32	67	30	14.5	19	82	880
NTA-1	--	--	--	500/660	200 ~ 250	1	Figure 11	135	68	20	48	8	26.5	--	60	380
NTA-2	--	--	--	500/660	315 ~ 400	2	Figure 11	150	68	25	58	8	32	--	70	673
NTA-3	--	--	--	500/660	500 ~ 630	3	Figure 11	150	68	32	67	8	40	--	82	870
RO36Z	RS36Z	--	--	500/660	125 ~ 160		Figure 11	135	68	20	40	25	20	11.5	61	369

Figure 11

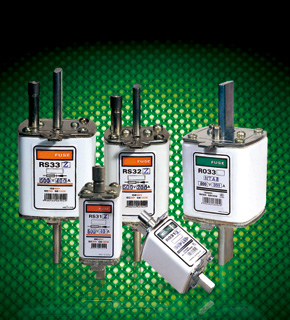

RO31Z, RS31Z, RO32Z, RS32Z, RO33Z, RS33Z, RO34Z, RS34Z, NTA-1, NTA-2, NTA-3, RO36Z, RS36Z

Table 12

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)										Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.	A	B	C	D	E	F	G	H

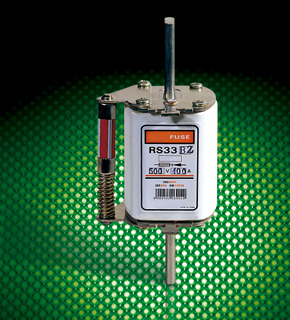

RO32BZ	RS32BZ	--	HLS1	500	125 ~ 250	1	Figure 12	135	68	20	50.5	9	24.5	26	68	380
RO33BZ	RS33BZ	--	HLS2	500	250 ~ 400	2	Figure 12	150	68	25	66.5	9	29	35	71	675

Figure 12

Table 13

Types				Rated voltage(V)	Rate current(A)	Dimension/ Size (mm)							Weight (g)
Ours		Cross reference				Dimension/ Size (mm)
General (gG)	Fast(aR)	General (gG)	Fast(aR)			Size	Fig.	A	B	C	D	H

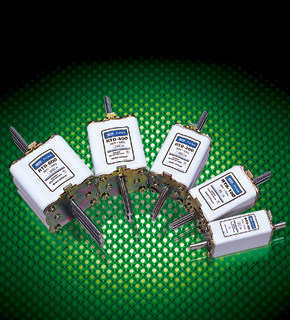

RTO-50	--	--	--	380	10 ~ 50	--	Figure 13	103	66	10.3	25	52	189.5
RTO-100	--	--	--	380	20 ~ 100	--	Figure 13	125	67	18	40	52	313
RTO-200	--	--	--	380	50 ~ 200	--	Figure 13	135	67	23	46	58	404.5
RTO-400	--	--	--	380	160 ~ 400	--	Figure 13	145	67	30	55	66	601
RTO-600	--	--	--	380	250 ~ 600	--	Figure 13	165	67	36	66	77	855
RTO-1000	--	--	--	380	500 ~ 1000	--	Figure 13	280	90	50	85	100	2050

Figure 13

RTO-50, RTO-100, RTO-200, RTO-400, RTO-600, RTO-1000

Characteristics Curve

Time-current rang of “gG” fuse links

Time-current rang of “gG” fuse links

Breaking current characteristics curve of “gG” fuse links
