Bullet Shaped Male Insulating Terminals

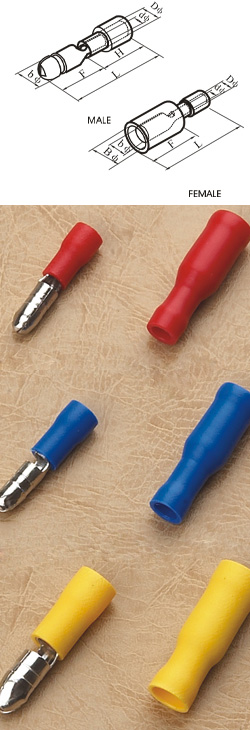

Bullet Shaped Insulating Terminals

0.5~1.5mm2(22-16) Imax=10A

Item No. Thickness(mm) Dimension(mm) Color
F H L
MPD1.25-156 0.4 4.0 11.0 2.7 1.7 10.0 21.0 Red

1.5~2.5mm2(16-14) Imax=15A

Item No. Thickness(mm) Dimension(mm) Color
F H L
MPD2-156 0.4 4.0 16.0 2.7 1.7 10.0 21.0 blue
MPD2-195 0.4 5.0 16.0 2.7 1.7 10.0 21.0

4~6mm2(12-10) Imax=24A

Item No. Thickness(mm) Dimension(mm) Color
F H L
MPD5.5-195 0.4 4.0 11.0 4.5 3.4 14.0 25.0 yellow

Bullet Shaped Famale Insulating Terminals

0.5~1.5mm2(22-16) Imax=10A

Item No. Thickness(mm) Dimension(mm) Color
F H L
FRD1.25-156 0.4 4.0 16.0 2.7 1.7 13.0 24.5 Red

1.5~2.5mm2(16-14) Imax=15A

Item No. Thickness(mm) Dimension(mm) Color
F H L
FRD2-156 0.4 4.0 6.3 3.3 2.3 14.0 24.5 blue
FRD2-195 0.4 5.0 7.0 3.3 2.3 14.0 24.5

4~6mm2(12-10) Imax=24A

Item No. Thickness(mm) Dimension(mm) Color
F H L
FRD5.5-195 0.4 5.0 7.0 4.5 3.4 14.0 29.5 yellow
