Insulated Tablets Terminals

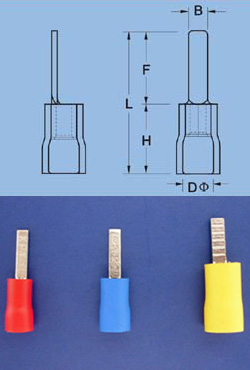

Insulated tablets terminals

0.5～1.5mm2(22-16) Imax=19A Material: Copper thickness 0.75mm

Item No. Dimension(mm) Color
BФ  L F H DФ
DBV 1.25 - 10 2.3 20.0 10.0 10.0 4.3 Red
DBV 1.25 - 11 3.0 21.0 11.0
DBV 1.25 - 14 3.0 24.0 14.0
DBV 1.25 - 18 2.3 28.0 18.0

1.5～2.5mm2(16-14) Imax=27A Material: Copper thickness 0.80mm

Item No. Dimension(mm) Color
BФ  L F H DФ
DBV 2 - 10 2.4 19.0 9.0 10.0 4.9 Blue
DBV 2 - 14 2.4 24.0 14.0
DBV 2 - 18 2.4 28.0 18.0

4～6mm2(12-10) Imax=48A Material: Copper thickness1.00mm

Item No. Dimension(mm) Color
BФ  L F H DФ
DBV 5.5 - 10 2.8 22.5 10.0 13.0 5.6 Yellow
DBV 5.5 - 14 4.5 26.5 14.0
DBV 5.5 - 18 4.5 30.5 18.0

Top

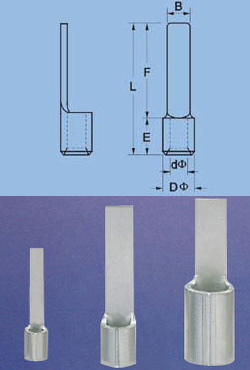

Naked Tablets Terminals

Naked Tablets Terminals

0.5～1.5mm2(22-16) Imax=19A Material: Copper thickness 0.75mm

Item No. Dimension(mm)
BФ  L F E DФ dФ
DBN 1.25 - 10 2.3 14.8 10.0 4.8 3.4 1.7
DBN 1.25 - 11 3.0 15.8 11.0
DBN 1.25 - 14 3.0 18.8 14.0
DBN 1.25 - 18 2.3 22.8 18.0

1.5～2.5mm2(16-14) Imax=27A Material: Copper thickness :0.80mm

Item No. Dimension(mm)
BФ  L F E DФ dФ
DBN 2 - 9 2.8 13.8 9.0 4.8 4.1 2.3
DBN 2 - 18 2.3 22.8 18.0

4～6mm2(12-10) Imax=48A Material: Copper thickness :1.00mm

Item No. Dimension(mm)
BФ  L F E DФ dФ
DBN 5.5 - 10 2.8 14.8 10.0 6.0 5.6 3.4
DBN 5.5 - 14 4.5 21.0 14.0
DBN 5.5 - 18 4.5 23.0 18.0
DBN 8 - 14 5.0 22.5 14.0 8.5 7.2 4.5
DBN 14 - 16 6.0 30.6 16.0 14.0 9.0 6.5
