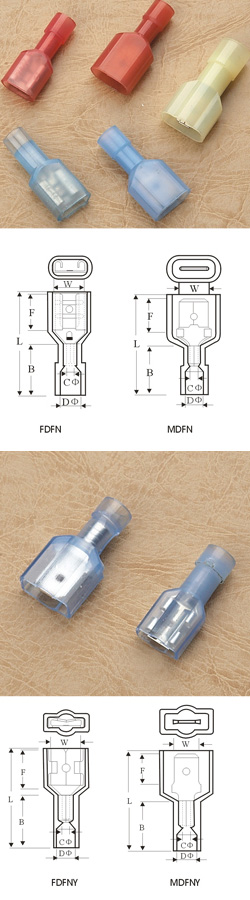

Male and Female Full-insualting Joint (Nylon)

Male and Female Full-insualting Joint (Nylon)

10A Brass Nylon

Item No.	Mema TAB	Dimension(mm)							A.W.G mm²	Color
		W	F	L	B	DФ	CФ	T
FDFN 1.25-250	0.8×6.35	6.6	7.3	22.0	11.0	4.0	1.7	0.4	22-16A.W.G 0.5-1.5mm2	Red
MDFN 1.25-250		6.35	7.7	23.0

15A Brass Nylon

Item No.	Mema TAB	Dimension(mm)							A.W.G mm²	Color
		W	F	L	B	DФ	CФ	T
FDFN 2-250	0.8×6.35	6.6	7.3	22.0	11.0	4.0	2.3	0.4	16-14A.W.G 1.5-2.5mm2	Blue
MDFN 2-250		6.35	7.7	23.0

24A Brass Nylon

Item No.	Mema TAB	Dimension(mm)							A.W.G mm²	Color
		W	F	L	B	DФ	CФ	T
FDFN 5.5-250	0.8×6.35	6.6	7.3	24.0	13.0	6.3	3.4	0.4	12-10A.W.G 4-6mm2	Yellow
MDFN 5.5-250		6.35	7.7	25.0

10A Brass Nylon

Item No.	Mema TAB	Dimension(mm)							A.W.G mm²	Color
Item No.	Mema TAB	W	F	L	B	DФ	CФ	T	A.W.G mm²	Color
FDFNY 1.25-250	0.8×6.35	6.6	7.3	22.0	12.0	4.0	1.7	0.45	22-16A.W.G 0.5-1.5mm2	Red
MDFNY 1.25-250	0.8×6.35	6.35	7.7	23.0	11.0	4.0	1.7	0.8	22-16A.W.G 0.5-1.5mm2	Red

15A Brass Nylon

Item No.	Mema TAB	Dimension							A.W.G mm²	Color
Item No.	Mema TAB	W	F	L	B	DФ	CФ	T	A.W.G mm²	Color
FDFNY 2-250	0.8×6.35	6.6	7.3	23.0	12.0	4.5	2.3	0.45	16-14A.W.G 1.5-2.5mm2	Blue
MDFNY 2-250	0.8×6.35	6.35	7.7	24.0	11.0	4.5	2.3	0.8	16-14A.W.G 1.5-2.5mm2	Blue

24A Brass Nylon

Item No.	Mema TAB	Dimension(mm)							A.W.G mm²	Color
Item No.	Mema TAB	W	F	L	B	DФ	CФ	T	A.W.G mm²	Color
FDFNY 5.5-250	0.8×6.35	6.6	7.3	23.0	12.0	5.0	3.4	0.45	12-10A.W.G 4-6mm2	Yellow
MDFNY 5.5-250	0.8×6.35	6.35	7.7	24.0	11.0	5.0	3.4	0.8	12-10A.W.G 4-6mm2	Yellow

Disclaimer: The appearance of the products listed on this website, color, parameters are for reference only, issued a kind of LANGIR Electric Company shall prevail.
LANGIR Electric Company reserves the right to modify or cancel the relevant parameters of this website does not advance notice. If in doubt, please contact customer service hotline.
