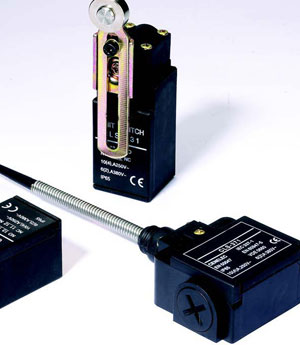

CLS Limit Switch

Home
CLS Micro Switch

Features

  • Economical & plastic type
  • Stainless steel roller, punch and spring
  • Swing amplitude, extra large ± 95°
  • PG13.5 cable gland that can be equipped.
  • Electrical life

    >> Download PDF (588KB)

    Ratings

    Model CLS 101
    301
    101
    303
    111
    311
    121
    321
    127
    327
    131
    331
    161
    361
    171
    371
    181
    381
    191
    391
    Operating force OF Max. 700g 700g 700g 500g 700g 500g-cm 100g 100g 100g 500g-cm
    Release force RF Min. 200g 200g 200g 100g-cm 200g 100g-cm 40g 40g 40g 100g-cm
    Pre-travel PT Max. 1.8mm 1.8mm 1.8mm 20 º 1.8mm 20 º 30mm 30mm 30mm 20 º
    Tripping position TP ± 10% 2.0mm 2.0mm 2.0mm 22.5 º 2.0mm 22.5 º 22.5 º 22.5 º 22.5 º 22.5 º
    Movement differential MD Max. 1.2mm 1.2mm 1.2mm 10 º 1.2mm 10 º 14 º 14 º 14 º 10 º
    Over travel OT Min. 4.0mm 4.0mm 4.0mm 75 º 4.0mm 75 º 20mm 20mm 20mm 75 º
    Total travel TT Min. 5.8mm 5.8mm 5.8mm 95 º 5.8mm 95 º 50mm 50mm 50mm 95 º
    Rotary indexing   22.5 º 22.5 º 22.5 º

    Characteristics

    Double Break Mechanism INO+INC Force Break snap action
    Rated Voltage/Current 10(4)A, 125, 250VAC/6(2)A, 380VAC  For inductance Load, CosØ =0.4
    Contact Resistance 25mΩ max. (initial value)
    Insulation Resistance 100mΩ min. (at 500VDC)
    Dielectric Strength 1000VAC, 50/60 HZ for 1 minute between terminals of the same polarity
    1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts
    1500VAC, 50/60 HZ for 1 minute between each terminal and ground
    Electrical Life 500,000 at 10A 250VAC Resistive
    Mechanical Life 10, 000, 000 operations min. (under rated conditions)
    Operating Speed 5mm/s to 0.5m/s
    Degree of Protection IP65
    Ambient Temperature Rised Max 30℃ over ambient temperature at rated voltage/current
    Conformed Standards Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
    Operating Temperature -5℃ ~+65℃ (with no icing)
    Storage Temperature -5℃ ~+65℃ (with no icing)
    Ambient Operating Humidity 95 RH Max.
    Shock Resistance Mechanical durable: 1000m/s2 min.
    Malfunction: 300m/s2 min.
    Vibration Frequency Malfunction: 10 to 55HZ, 1.5mm double amplitude
    Terminal Screw Torsional Force 6-8 kgf-cm
    Other Screw Torsional Force Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
    Bare Wire Diameter Ø2 Max
    Cable Diameter Ø12 Max
