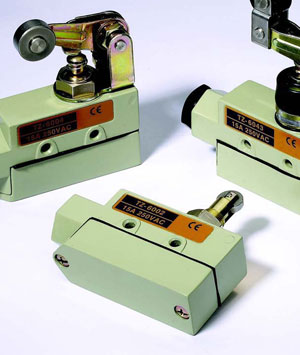

TZ-6 Sealed Limit Switch

Features

  • Built-in CM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof
  • It is the same as CM micro switch in the rated value and characteristics
  • Various of actuators that are taken convenience for using
  • Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut

    • Contact Form

    >> Download PDF (302KB)

    Operating characteristics

    Models TZ-6001 TZ-6002 TZ-6003 TZ-6004 TZ-6043 TZ-6101 TZ-6102 TZ-6103 TZ-6104 TZ-6143
    OF Max. 250~350g 250~350g 570g 570g 800g 500g 640g 640g
    RF Min. 114g 114g 170g 170g 240g 100g 230g 230g
    PT Max. 0.4mm 0.5mm 4mm 4mm 2mm 1mm 5mm 5mm
    OT Min. 5.5mm 3.6mm 6mm 6mm 5mm 3.5mm 6mm 6mm
    MD Max. 0.05mm 0.05mm 0.4mm 0.4mm 0.1mm 0.12mm 0.4mm 0.4mm
    OP 38.2±0.8mm 49.7 ±1mm     45.8 ± 0.8mm 49.7 ±0.8mm   -
